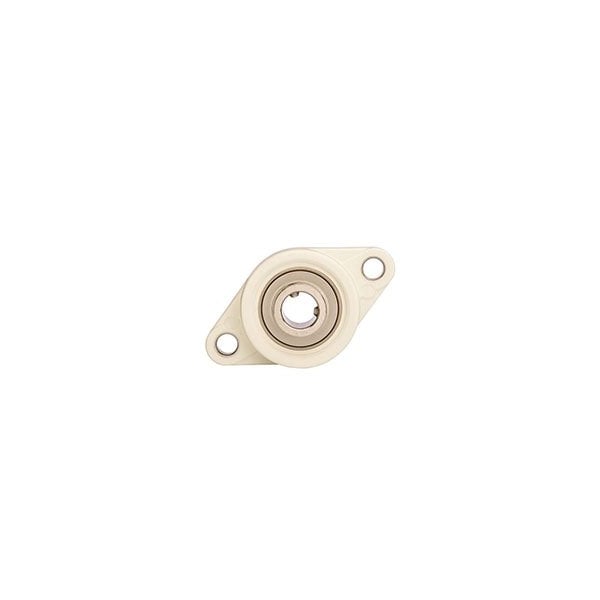

Flange Bearing, 2-Bolt, Ball, 1-1/4" Bore

  • Mfr # SUCNFL207-20
  • Zoro # G0873993

product price:
$
306.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCNFL207-20
Zoro #
G0873993
UPC #
-
Country of Origin
Multiple
System of Measurement
Inch
Item
2 Bolt Flange Bearing
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Insert Material
Stainless Steel
Dynamic Load Capacity
4,519 lbf
Series
Corrosion Resistant with USDA-H1 Grease
Temp. Range
-4 Degrees to 250 Degrees F
Finish
None
Bearing Lubrication
Relubricateable
Static Load Capacity
15600 N
Includes
(2) Set Screws
Lubrication Openings
None
Bearing Material Grade
440C
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Maximum Speed
3,700 RPM
Seal Type
Contact
Maximum Temperature
212 Degrees F
Resistance Properties
Corrosion-Resistant
Seal Material
Silicone
Minimum Temperature
-4 Degrees F
Included Bearing
SUC207-20
Static Radial Load Capacity
3,507 lbf
Housing Material Finish
Unfinished
Closure
Double Sealed
Bore Type
Cylindrical
Lubricant Material
H-1 Food Grade Solid Lubricant
Rolling Element Rows
1
Expansion Type
Fixed
Standards
IP69K
Internal Clearance
CN
Load Direction
Thrust, Radial
Split Housing
Not Split
Features
Cap Ready
For Environment
Food and Beverage, Washdown
Number of Rows
1
Maximum Misalignment Angle
2 Degrees
Includes Bearing Cap
Bearing Cap Not Included

Dimensions

Bolt Size
M12
Bore Diameter
1-1/4 in
Mount Hole Center-to-Center Length
5-7/64 in
Overall Length
6-13/32 in
Overall Width
2-27/64 in
Overall Height
3-17/32 in
Flange Thickness
5/8 in
Dimension A
6 7/16 in
Dimension G
41/64 in
Dimension E
5 1/8 in
Dimension L
3 35/64 in
Dimension S
33/64 in
Dimension B
1 11/16 in
Mount Hole Size
0.512 in
Back Side to Center Width
0.709 in
Mounting Bolt Size
1/2, M12
Wire Rope Length
6 13/32 in
Inner Ring Width
1.69 in
Mount Hole Center-to-Center Height
0 in
Bolt Circle Diameter
5.12 in
Center Height
1 49/64 in
Length
6 13/32 in
Fits Chest Size
Cap Ready

Description

Flange Mount Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 1 49/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC207-20, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F
