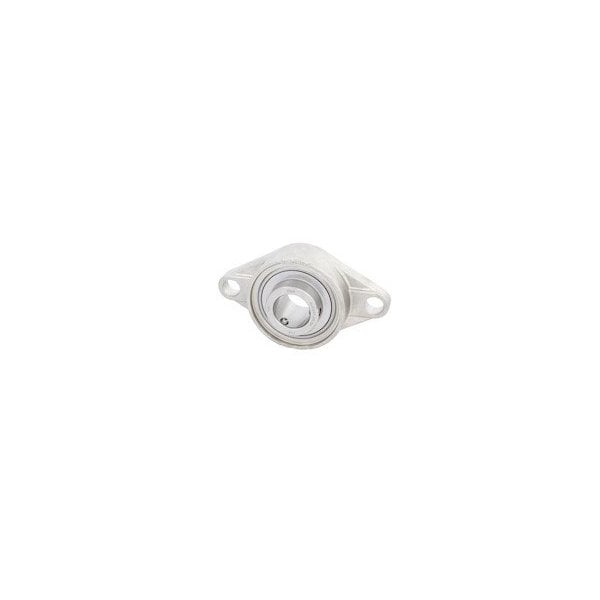

Flange Bearing, 2-Bolt, Ball, 1-3/4" Bore

  • Mfr # SUCFL209-28
  • Zoro # G3331623
product price:
$
522.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SUCFL209-28
Zoro #
G3331623
UPC #
-
Country of Origin
Multiple

Dimensions

Bolt Size
M16
Bore Diameter
1-3/4 in
Mount Hole Center-to-Center Length
5-53/64 in
Overall Length
7-5/64 in
Overall Width
2-13/64 in
Overall Height
4-1/4 in
Flange Thickness
19/32 in
Dimension G
16 mm
Dimension S
19 mm
Dimension N
19 mm
Dimension L
38 mm
Dimension A
188 mm
Dimension E
148 mm
Mount Hole Center-to-Center Height
0 in
Back Side to Center Width
0.866 in
Mount Hole Size
0.748 in
Mounting Bolt Size
5/8, M16
Wire Rope Length
7 5/64 in
Bolt Circle Diameter
5.83 in
Inner Ring Width
1.94 in
Center Height
2 1/8 in
Length
7 5/64 in
Fits Chest Size
Cap Ready

Details

System of Measurement
Inch
Item
Flange Mount Bearing
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Stainless Steel
Bearing Insert Material
Stainless Steel
Bearing Lubrication
Relubricateable
Finish
Chrome
Series
Sentinel Series
Static Load Capacity
20800 N
Dynamic Load Capacity
5,780 lbf
Temp. Range
-4 Degrees to 250 Degrees F
Includes
(2) Set Screws
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Lubrication Openings
Grease Fitting
Static Radial Load Capacity
4,680 lbf
Bore Type
Cylindrical
Resistance Properties
Corrosion-Resistant
Closure
Double Sealed
Seal Type
Contact
Included Bearing
SUC209-28
Minimum Temperature
-4 Degrees F
Lubricant Material
H-1 Food Grade Solid Lubricant
Housing Material Grade
304
Rolling Element Rows
1
Seal Material
Silicone
Maximum Temperature
212 Degrees F
Housing Material Finish
Unfinished
Maximum Speed
3,100 RPM
Bearing Material Grade
440C
Expansion Type
Fixed
Features
Cap Ready
Load Direction
Thrust, Radial
Internal Clearance
CN
Maximum Misalignment Angle
2 Degrees
For Environment
Food and Beverage, Washdown
Number of Rows
1
Includes Bearing Cap
Bearing Cap Not Included
Split Housing
Not Split
Standards
IP69K

Description

2 Bolt Flange Bearing, Back Side to Center Width 0.866 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC209-28, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 5 53/64 in
