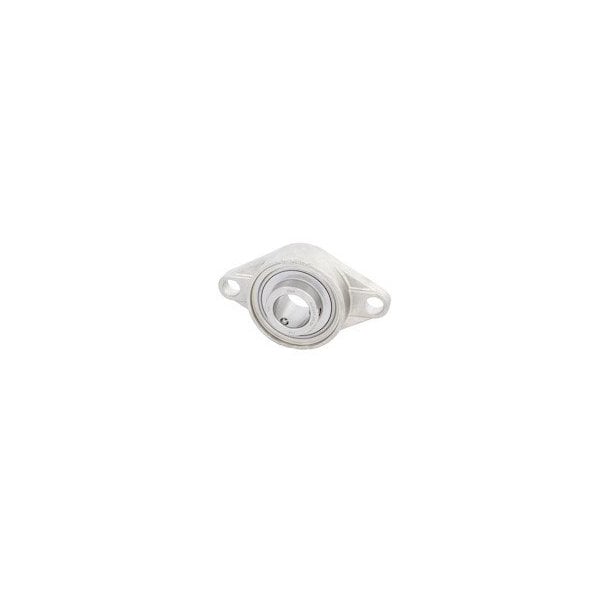

Flange Bearing, 2-Bolt, Ball, 1-7/16" Bore

  • Mfr # SUCFL207-23
  • Zoro # G1755345

product price:
$
344.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCFL207-23
Zoro #
G1755345
UPC #
-
Country of Origin
Multiple
System of Measurement
Inch
Item
2 Bolt Flange Bearing
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Stainless Steel
Bearing Insert Material
Stainless Steel
Temp. Range
-4 Degrees to 250 Degrees F
Finish
Chrome
Static Load Capacity
15600 N
Series
Sentinel Series
Dynamic Load Capacity
4,510 lbf
Bearing Lubrication
Relubricateable
Includes
(2) Set Screws
Seal Material
Silicone
Included Bearing
SUC207-23
Lubricant Material
H-1 Food Grade Solid Lubricant
Housing Material Grade
304
Rolling Element Rows
1
Lubrication Openings
Grease Fitting
Static Radial Load Capacity
3,507 lbf
Seal Type
Contact
Minimum Temperature
-4 Degrees F
Bearing Material Grade
440C
Bore Type
Cylindrical
Maximum Temperature
212 Degrees F
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Maximum Speed
3,700 RPM
Housing Material Finish
Unfinished
Closure
Double Sealed
Resistance Properties
Corrosion-Resistant
Expansion Type
Fixed
Number of Rows
1
Features
Cap Ready
For Environment
Food and Beverage, Washdown
Load Direction
Thrust, Radial
Standards
IP69K
Includes Bearing Cap
Bearing Cap Not Included
Maximum Misalignment Angle
2 Degrees
Split Housing
Not Split
Internal Clearance
CN

Dimensions

Bolt Size
M14
Bore Diameter
1-7/16 in
Mount Hole Center-to-Center Length
5-1/8 in
Overall Length
5-13/32 in
Overall Width
1-3/4 in
Overall Height
3-33/64 in
Flange Thickness
19/32 in
Dimension A
161 mm
Dimension N
17.5 mm
Dimension S
16 mm
Dimension E
130 mm
Dimension L
34 mm
Dimension G
15 mm
Back Side to Center Width
0.748 in
Mount Hole Center-to-Center Height
0 in
Mount Hole Size
0.63 in
Mounting Bolt Size
1/2, M14
Wire Rope Length
5 13/32 in
Bolt Circle Diameter
3.54 in
Inner Ring Width
1.69 in
Center Height
1 49/64 in
Length
5 13/32 in
Fits Chest Size
Cap Ready

Description

Flange Mount Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Center Height 1 49/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC207-23, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F
