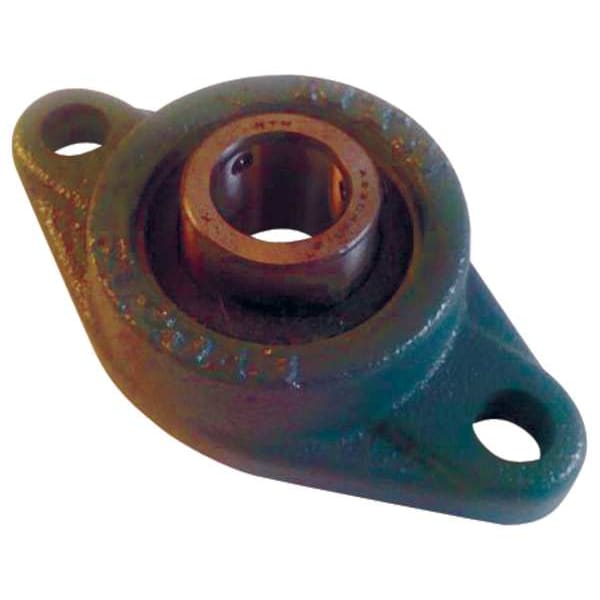

Flange Bearing, 2-Bolt, Ball, 1" Bore
Mfr # UCFL205-100D1
Zoro # G0302732
product price: $55.79
/eaKey Features
Bearing Insert Type
Radial Ball
Bore Dia.
1 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
Alloy Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UCFL205-100D1
Zoro #
G0302732
UPC #
-
Country of Origin
Japan
Dimensions
Bore Dia.
1 in
Bolt Size
1/2 in
Overall Height
2 11/16 in
Dimension S
1 11/32 in
Dimension H1
1 1/16 in
Dimension J
1 13/32 in
Dimension H
5 1/8 in
Dimension L
1/2 in
Dimension B
2 29/32 in
Dimension D
3 57/64 in
Dimension N
1 3/4 in
Dimension A
5/64 in
Dimension C
5/8 in
Overall Length
5 1/8 in
Overall Width
1 13/32 in
Flange Thickness
21/64 in
Bore Diameter
1 in
Mount Hole Size
0.63 in
Inner Ring Width
4.5 mm
Mounting Bolt Size
5/8 in
Mount Hole Center-to-Center Length
3 57/64 in
Back Side to Center Width
0.63 in
Description
2 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 11/16 in
