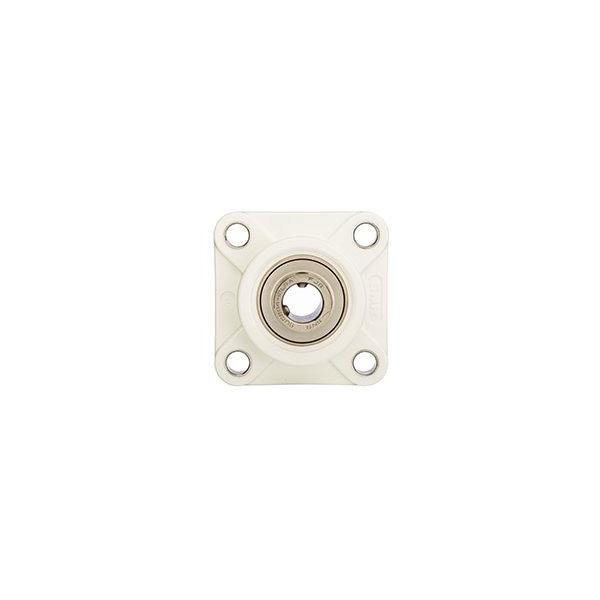

Flange Bearing, 4-Bolt, 1-1/4" Bore, PBT/SS
Mfr # SUCFPL207-20CCFG1
Zoro # G0600472
product price:Â $366.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCFPL207-20CCFG1
- Zoro #
- G0600472
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Bolt Size
- 1/2 in
- Bore Diameter
- 1-1/4 in
- Mount Hole Center-to-Center Length
- 3-39/64 in
- Overall Length
- 4-41/64 in
- Overall Width
- 1-27/32 in
- Overall Height
- 4-41/64 in
- Flange Thickness
- 39/64 in
- Mount Hole Center-to-Center Height
- 3 39/64 in
- Mount Hole Size
- 0.512 in
- Back Side to Center Width
- 0.846 in
- Mounting Bolt Size
- 1/2, M12
- Wire Rope Length
- 4 41/64 in
- Center Height
- 2 21/64 in
- Inner Ring Width
- 1.69 in
Description
Flange Mount Bearing, Back Side to Center Width 0.846 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 2 21/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Square, Included Bearing SUC207-20FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F
