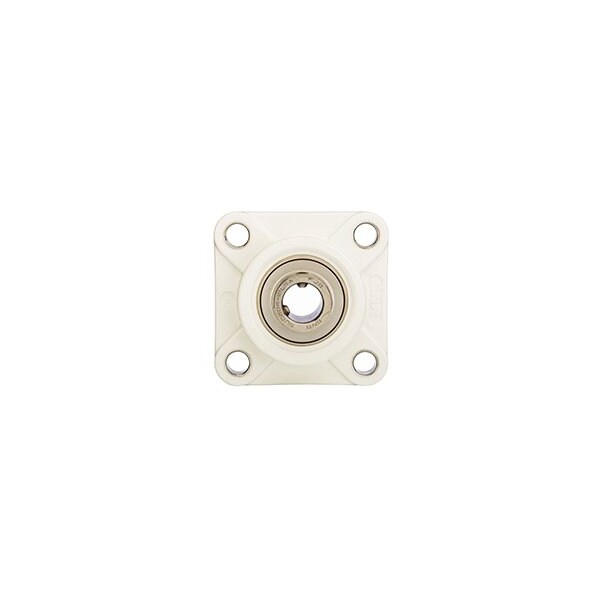

Flange Bearing, 4-Bolt, 1-7/16"Bore, PBT/SS

  • Mfr # SUCFPL207-23CCFG1

  • Zoro # G1460982

product price:
$
367.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCFPL207-23CCFG1
Zoro #
G1460982
UPC #
-
Country of Origin
Multiple
System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Insert Material
Stainless Steel
Static Load Capacity
15600 N
Dynamic Load Capacity
4,520 lbf
Series
Sentinel Series
Includes
Closed End Cap
Finish
Unfinished
Standards
IP69K
Bearing Lubrication
Maintenance-Free
Temp. Range
-4 to 250 Degrees F
Maximum Speed
3,700 RPM
Closure
Double Sealed
Resistance Properties
Corrosion-Resistant
Lubricant Material
H-1 Food Grade Solid Lubricant
Rolling Element Rows
1
Seal Material
Silicone
Housing Material Finish
Unfinished
Static Radial Load Capacity
3,507 lbf
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Lubrication Openings
None
Included Bearing
SUC207-23FG1
Bearing Material Grade
440C
Maximum Temperature
212 Degrees F
Bore Type
Cylindrical
Minimum Temperature
-4 Degrees F
Seal Type
Contact
Expansion Type
Fixed
Includes Bearing Cap
Bearing Cap Included
Internal Clearance
CN
Maximum Misalignment Angle
2 Degrees
Features
Cap Ready, Maintenance Free Solid Lubricant
For Environment
Food and Beverage, Washdown
Number of Rows
1
Split Housing
Not Split
Load Direction
Thrust, Radial

Description

4 Bolt Flange Bearing, Back Side to Center Width 0.846 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC207-23FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 3 39/64 in
