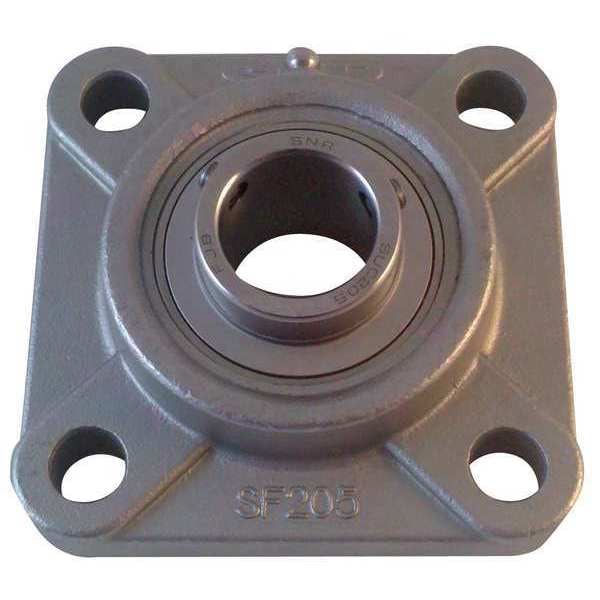

Flange Bearing, 4-Bolt, Ball, 1" Bore
Mfr # SUCF205-16CC
Zoro # G2585158
product price: $199.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Bore Dia.
1 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Stainless Steel
Bearing Insert Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SUCF205-16CC
Zoro #
G2585158
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Dia.
1 in
Bolt Size
M10
Overall Height
3 3/4 in
Overall Width
1 13/32 in
Overall Length
3 3/4 in
Mount Hole Center-to-Center Length
2 3/4 in
Bore Diameter
1 in
Back Side to Center Width
0.63 in
Mount Hole Size
0.472 in
Mount Hole Center-to-Center Height
2 3/4 in
Bolt Circle Diameter
1.406 in
Flange Thickness
35/64 in
Mounting Bolt Size
7/16 in
Description
4 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
