  11. Flange Bearing, 4-Bolt, Ball, 1" Bore
Shop All Flange Bearings
Ntn

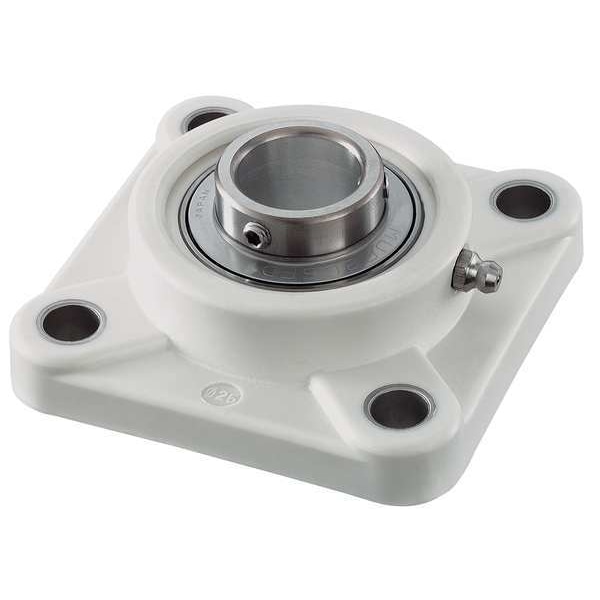

Flange Bearing, 4-Bolt, Ball, 1" Bore

product price: $203.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 1 in
  • Shaft Locking Type Set Screws
  • Bearing Housing Material Type PBT
  • Bearing Insert Material Stainless Steel
See all product information

Product Information

Dimensions

Bore Dia. 1 in
Bolt Size M10
Overall Height 3 47/64 in
Dimension G 9/16 in
Overall Length 3 47/64 in
Dimension S 7/16 in
Dimension A 3 3/4 in
Dimension E 2 3/4 in
Dimension B 1 11/32 in
Overall Width 1 7/16 in
Bore Diameter 1 in
Mount Hole Size 0.433 in
Mounting Bolt Size 3/8 in
Mount Hole Center-to-Center Length 2 3/4 in
Mount Hole Center-to-Center Height 2 3/4 in
Back Side to Center Width 0.669 in

Details

Bearing Insert Type Radial Ball
Shaft Locking Type Set Screws
Bearing Housing Material Type PBT
Bearing Insert Material Stainless Steel
Bolt Hole Center-to-Center 70 mm
Series Corrosion Resistant with USDA-H1 Grease
Static Load Capacity 1,420 lb
Locking Type Set Screw
Item 4 Bolt Flange Bearing
Housing Material Polymer
Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
Dynamic Load Capacity 2,473 lbf
Finish None
Temp. Range -4 Degrees to 230 Degrees F
Includes (4) Set Screws
Resistance Properties Corrosion Resistant
Seal Type Contact
Flange Thickness 35/64 in
Maximum Temperature 250 Degrees F
Number of Mount Holes 4
Static Radial Load Capacity 1,798 lbf
Lubrication Openings None
Closure Double Sealed
Minimum Temperature -4 Degrees F
Lubricant Material FDA/USDA-H1 Solid Grease
Bearing Material Grade 440C
Housing Material Grade PBT - Thermoplastic
Bore Type Cylindrical
System of Measurement Inch
Seal Material Silicone
Rolling Element Rows 1
Maximum Speed 5,100 RPM
Included Bearing SUC205-16
Application Food and Beverage
Housing Material Finish Unfinished
Housing Type Square

Description

4 Bolt Flange Bearing, Back Side to Center Width 0.669 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Polymer, Housing Type Square, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in, Number of Mount Holes 4
