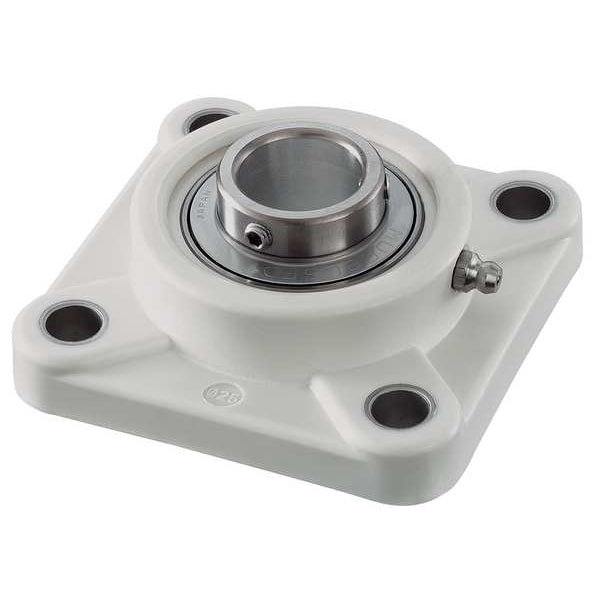

Flange Bearing, 4-Bolt, Ball, 25mm Bore
Mfr # SUCFPL205
Zoro # G1031037
product price: $187.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Bore Dia.
25 mm
Shaft Locking Type
Set Screws
Bearing Housing Material Type
PBT
Bearing Insert Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SUCFPL205
Zoro #
G1031037
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Dia.
25 mm
Bolt Size
M10
Overall Height
95 mm
Dimension S
11 mm
Overall Width
36.8 mm
Dimension B
34 in
Dimension E
70 mm
Overall Length
95 mm
Dimension G
14.3 mm
Dimension A
95 mm
Back Side to Center Width
17 mm
Mount Hole Center-to-Center Length
70 mm
Mounting Bolt Size
M10
Mount Hole Size
11 mm
Bore Diameter
25 mm
Mount Hole Center-to-Center Height
70 mm
Flange Thickness
14.2 mm
Description
4 Bolt Flange Bearing, Back Side to Center Width 17 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC205, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 70 mm, Number of Mount Holes 4
