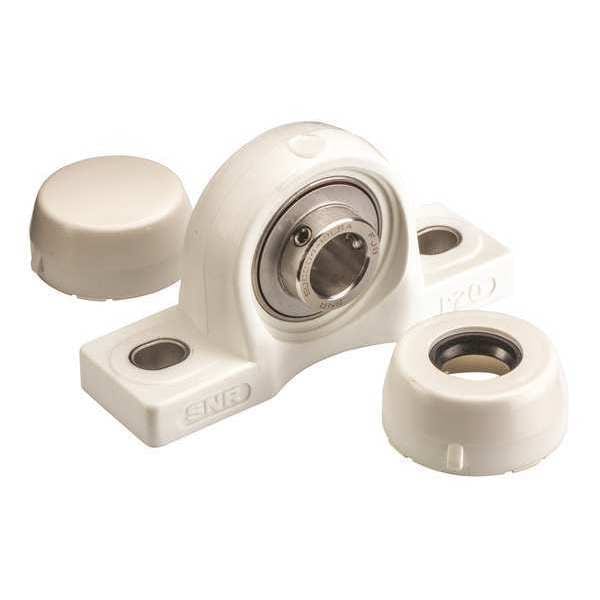

Pillow Block Bearing, 1" Bore, PBT/SS
Mfr # SUCPPL205-16CCFG1
Zoro # G2124293
product price: $255.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Bore Dia.
1 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
PBT
Bearing Insert Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SUCPPL205-16CCFG1
Zoro #
G2124293
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Dia.
1 in
Overall Length
5.5 in
Overall Width
1.484 in
Overall Height
2.781 in
Bolt Size
3/8 in
Mounting Bolt Size
3/8 in
Mount Hole Size
0.433 in
Inner Ring Width
1.342 in
Bore Diameter
1 in
Center Height
1 27/64 in
Mount Hole Center-to-Center Length
4 1/8 in
Base Height
0.57 in
Description
Pillow Block Bearing, Base Height 0.57 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.781 in, Overall Length 5.5 in
