Ntn

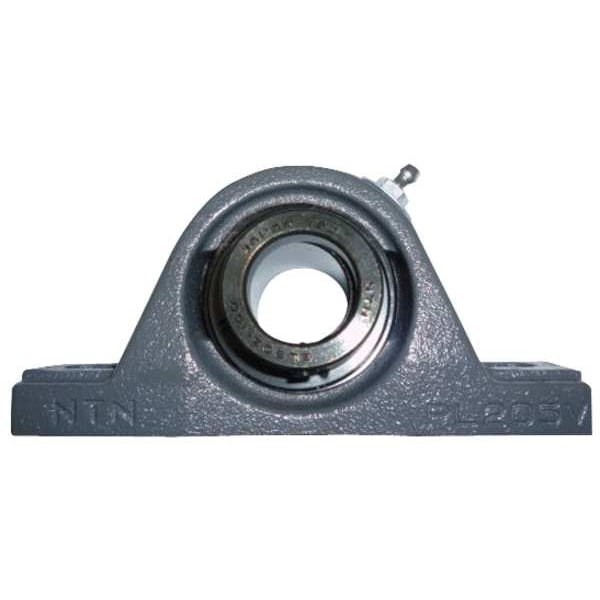

Pillow Block Bearing, Ball, 2-7/16" Bore
Mfr # UELP-2.7/16M
Zoro # G2175363
product price: $214.99
/ea
Free Shipping & Returns
Key Features
- Bearing Insert Type Radial Ball
- Shaft Locking Type Eccentric Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material Alloy Steel
- Bolt Hole Center-to-Center 7 13/32 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamProduct Information
- Brand Ntn
- MFR # UELP-2.7/16M
- Zoro # G2175363
- Country of Origin Japan
- Category Pillow Block Bearings
Dimensions
| Bore Dia. | 2 7/16 in |
| Overall Length | 9.5 in |
| Dimension N | 23/32 in |
| Dimension A | 2 3/4 in |
| Dimension J | 7 13/32 in |
| Bolt Size | 5/8 in |
| Dimension S | 1 7/32 in |
| Dimension H | 2 3/4 in |
| Dimension L | 9 1/2 in |
| Dimension E | 1 53/64 in |
| Dimension D | 2 7/16 in |
| Dimension H1 | 31/32 in |
| Dimension H2 | 5 7/16 in |
| Overall Height | 5.437 in |
| Dimension B | 3 1/16 in |
| Overall Width | 2.75 in |
| Bore Diameter | 2 7/16 in |
| Base Width | 2.752 in |
| Center Height | 2 3/4 in |
| Mount Hole Size | 0.72 in x 1.094 in |
| Base Height | 0.968 in |
| Mounting Bolt Size | 5/8 in |
| Mount Hole Center-to-Center Length | 7 25/64 in |
Description
Pillow Block Bearing, Base Height 0.968 in, Base Width 2.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 7/16 in, Bore Type Cylindrical, Center Height 2 3/4 in, Closure Open, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 2,500 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 7 25/64 in, Mount Type Bolt-Through, Number of Mount Holes 2
