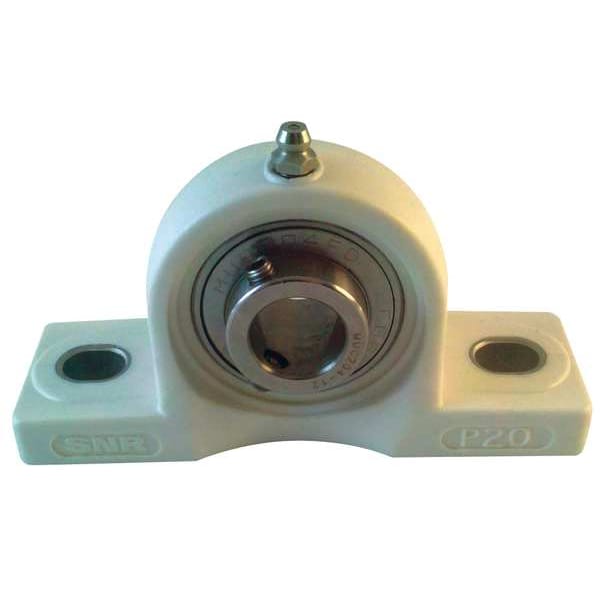

Pillow Block Bearing, Ball, 35mm Bore
Mfr # SUCPPL207
Zoro # G1689362
product price: $311.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
PBT
Bearing Insert Material
Stainless Steel
Bolt Hole Center-to-Center
127 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SUCPPL207
Zoro #
G1689362
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Dia.
35 mm
Dimension E Max.
133 mm
Dimension E Min.
121 mm
Dimension C
48 mm
Overall Length
167 mm
Overall Height
94 mm
Dimension H
47.6 mm
Dimension N
18 mm
Dimension G
18 mm
Dimension W
94.5 mm
Bolt Size
M10
Dimension A
168 mm
Overall Width
48 mm
Dimension S
14 mm
Dimension B
42.9 mm
Base Height
18 mm
Mount Hole Center-to-Center Length
127 mm
Bore Diameter
35 mm
Mounting Bolt Size
M10
Mount Hole Size
14 mm
Inner Ring Width
42.9 mm
Center Height
47.5 mm
Description
Pillow Block Bearing, Base Height 18 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 35 mm, Bore Type Cylindrical, Center Height 47.5 mm, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Length 127 mm, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 94 mm, Overall Length 167 mm
