Shop NTN

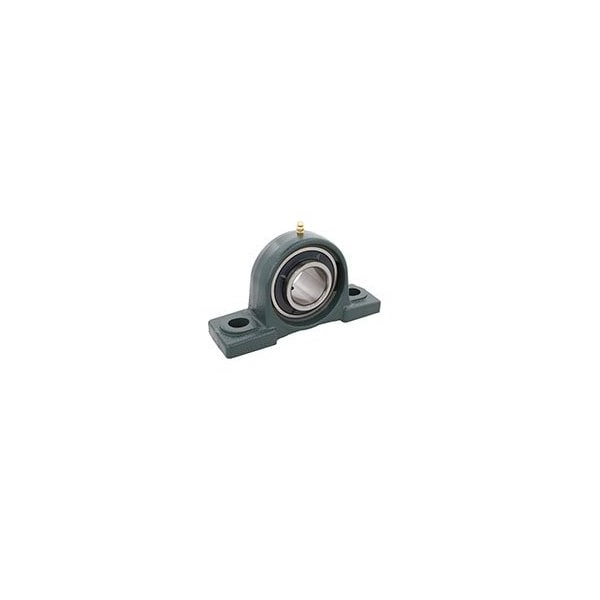

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Ball, 1-11/16 in Dia, Alloy Steel Insert Material

  • Mfr # UCP209-111D1

  • Zoro # G2747525

product price:
$
100.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UCP209-111D1
Zoro #
G2747525
UPC #
-
Country of Origin
Japan

Dimensions

Bore Diameter
1-11/16 in
Center Height
2-1/8 in
Mount Hole Center-to-Center Length
5-3/4 in
Mount Hole Size
0.669 in x 0.787 in
Overall Length
7.468 in
Overall Width
2.125 in
Overall Height
4.187 in
Dimension A
2 1/8 in
Dimension N
21/32 in
Dimension H1
25/32 in
Dimension J
5 3/4 in
Dimension B
1 15/16 in
Dimension S
3/4 in
Dimension H2
4 3/16 in
Dimension H
2 1/8 in
Dimension L
7 15/32 in
Base Width
2.126 in
Inner Ring Width
1.937 in
Base Height
0.787 in
Mounting Bolt Size
1/2 in
Wire Rope Length
7.48 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Insert Material
Alloy Steel
Series
Mounted Units
Closure
Open
Temp. Range
-20 Degrees to 250 Degrees F
Bearing Lubrication
Relubricateable
Finish
Painted
Dynamic Radial Load Capacity
7,306 lbf
Bearing Material Grade
AISI 52100
Static Radial Load Capacity
4,586 lbf
Seal Material
Nitrile
Maximum Temperature
250 Degrees F
Features
Light Duty
Minimum Temperature
-40 Degrees F
Mount Type
Bolt-Through
Seal Type
Contact
Number of Mount Holes
2
Bore Type
Cylindrical
Lubricant Material
NLGI #3 Equivalent
Maximum Speed
3,500 RPM
Expansion Type
Fixed
Split Housing
Not Split
Internal Clearance
CN

Description

Pillow Block Bearing, Base Height 0.787 in, Base Width 2.126 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 11/16 in, Bore Type Cylindrical, Center Height 2 1/8 in, Closure Open, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 3,500 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 5 47/64 in, Mount Type Bolt-Through
