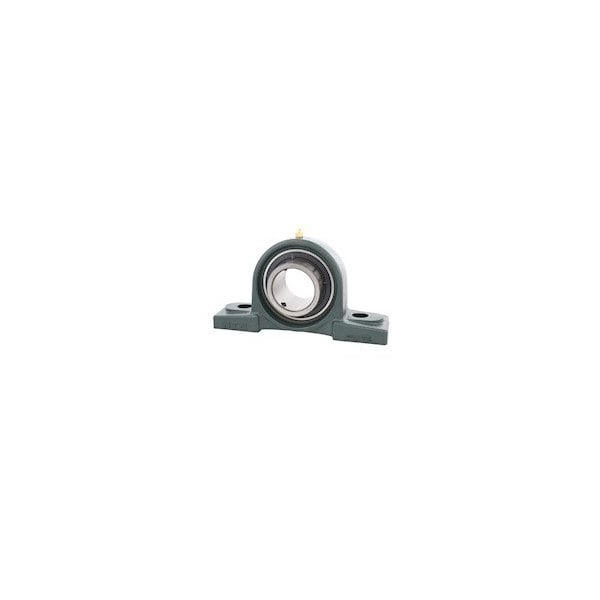

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Ball, 1-3/16 in Dia, Alloy Steel Insert Material

  • Mfr # UCPX06-103D1
  • Zoro # G3371365
product price:
$
86.89
/ea

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UCPX06-103D1
Zoro #
G3371365
UPC #
454735922364
Country of Origin
Japan

Dimensions

Bore Diameter
1-3/16 in
Center Height
1-55/64 in
Mount Hole Center-to-Center Length
5 in
Mount Hole Size
0.669 in x 0.787 in
Overall Length
6.875 in
Overall Width
2-1/4 in
Overall Height
3.656 in
Dimension H1
3 21/32 in
Dimension A
2 1/2 in
Dimension B
11/16 in
Dimension J
5 in
Dimension E
4 39/64 in
Dimension L
6 7/8 in
Dimension H2
2 1/8 in
Dimension N
21/32 in
Dimension H
1 7/8 in
Base Width
2.244 in
Mounting Bolt Size
1/2 in
Inner Ring Width
1.689 in
Base Height
0.787 in
Wire Rope Length
6.889 in
Length
6.889 in
Fits Chest Size
Medium Duty

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Insert Material
Alloy Steel
Series
Mounted Units
Closure
Open
Finish
Painted
Bearing Lubrication
Relubricateable
Temp. Range
-20 Degrees to 250 Degrees F
Bearing Material Grade
AISI 52100
Features
Medium Duty
Maximum Temperature
250 Degrees F
Number of Mount Holes
2
Seal Material
Nitrile
Bore Type
Cylindrical
Mount Type
Bolt-Through
Dynamic Radial Load Capacity
5,778 lbf
Seal Type
Contact
Minimum Temperature
-40 Degrees F
Lubricant Material
NLGI #3 Equivalent
Static Radial Load Capacity
3,440 lbf
Maximum Speed
3,450 RPM
Expansion Type
Fixed
Internal Clearance
CN
Split Housing
Not Split

Description

Pillow Block Bearing, Base Height 0.787 in, Base Width 2.244 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Center Height 1 55/64 in, Closure Open, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 3,450 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 5 in, Mount Type Bolt-Through, Number of Mount Holes 2
