Shop NTN

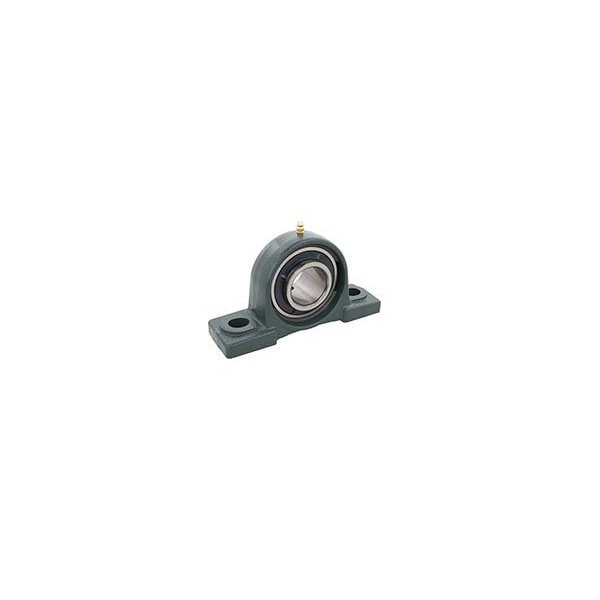

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Ball, 1-7/16 in Dia, Alloy Steel Insert Material

  • Mfr # UCP207-107D1

  • Zoro # G0728052

product price:
$
72.69
/ea

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UCP207-107D1
Zoro #
G0728052
UPC #
-
Country of Origin
Japan

Dimensions

Bore Diameter
1-7/16 in
Center Height
1-55/64 in
Mount Hole Center-to-Center Length
5 in
Mount Hole Size
0.669 in x 0.787 in
Overall Length
6.562 in
Overall Width
1.875 in
Overall Height
3.656 in
Dimension H
1 7/8 in
Dimension L
6 9/16 in
Dimension H2
3 21/32 in
Dimension S
11/16 in
Dimension H1
23/32 in
Dimension N
21/32 in
Dimension B
1 11/16 in
Dimension J
5 in
Dimension A
1 7/8 in
Inner Ring Width
1.689 in
Base Width
1.889 in
Mounting Bolt Size
1/2 in
Base Height
0.708 in
Wire Rope Length
6.574 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Insert Material
Alloy Steel
Series
Mounted Units
Closure
Double Sealed
Finish
Painted
Bearing Lubrication
Relubricateable
Temp. Range
-20 Degrees to 250 Degrees F
Static Radial Load Capacity
3,440 lbf
Seal Material
Nitrile
Seal Type
Contact
Minimum Temperature
-40 Degrees F
Mount Type
Bolt-Through
Dynamic Radial Load Capacity
5,778 lbf
Features
Light Duty
Number of Mount Holes
2
Bore Type
Cylindrical
Bearing Material Grade
AISI 52100
Maximum Speed
4,200 RPM
Maximum Temperature
250 Degrees F
Lubricant Material
NLGI #3 Equivalent
Split Housing
Not Split
Expansion Type
Fixed
Internal Clearance
CN

Description

Pillow Block Bearing, Base Height 0.708 in, Base Width 1.889 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Center Height 1 55/64 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,200 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 5 in, Mount Type Bolt-Through
