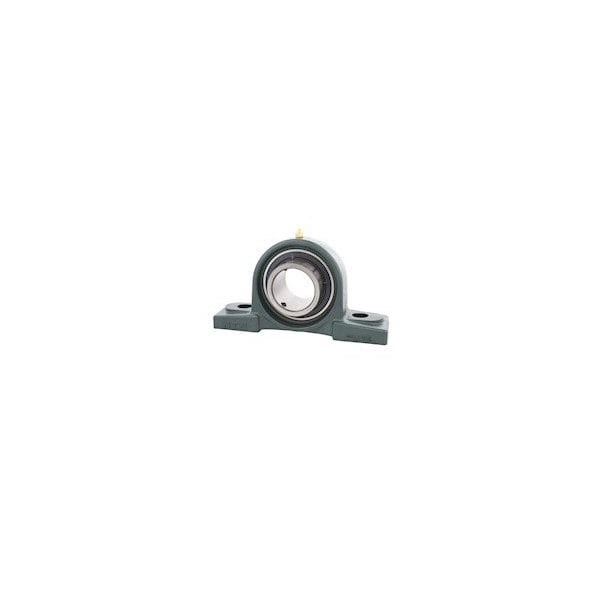

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Ball, 2-15/16 in Dia, Alloy Steel Insert Material
Mfr # UCPX15-215D1
Zoro # G1452087
product price:Â
$
341.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UCPX15-215D1
- Zoro #
- G1452087
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Bore Diameter
- 2-15/16 in
- Center Height
- 3-1/2 in
- Mount Hole Center-to-Center Length
- 9-1/64 in
- Mount Hole Size
- 1.063 in x 1.181 in
- Overall Length
- 13 in
- Overall Width
- 3-1/2 in
- Overall Height
- 6.875 in
- Dimension J
- 9 1/32 in
- Dimension N
- 1 1/16 in
- Dimension A
- 3 1/2 in
- Dimension H1
- 1 3/8 in
- Dimension H
- 3 1/2 in
- Dimension B
- 3 1/4 in
- Dimension L
- 13 in
- Dimension S
- 1 5/16 in
- Dimension H2
- 6 7/8 in
- Inner Ring Width
- 3.252 in
- Base Height
- 1.378 in
- Mounting Bolt Size
- 7/8 in
- Base Width
- 3.503 in
- Wire Rope Length
- 12.992 in
Description
Pillow Block Bearing, Base Height 1.378 in, Base Width 3.503 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 15/16 in, Bore Type Cylindrical, Center Height 3 31/64 in, Closure Open, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 1,500 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 9 1/64 in, Mount Type Bolt-Through
