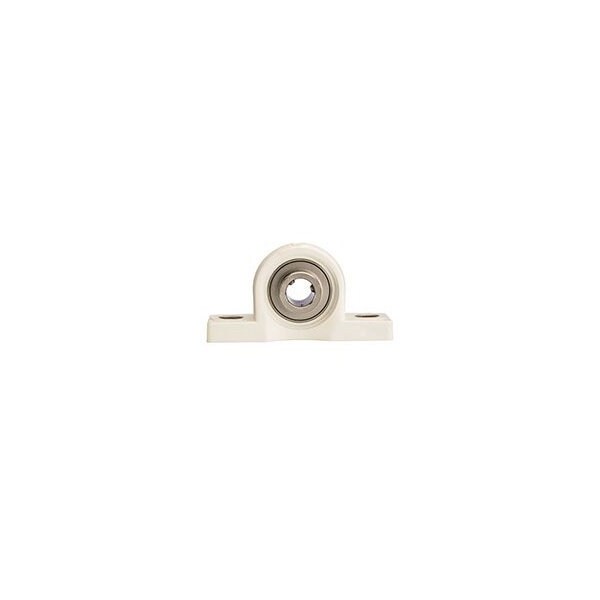

Pillow Block Bearing, Thermoplastic Housing Material, Set Screw, Ball, 1-1/4 in Dia, Stainless Steel Insert Material

  • Mfr # SUCPPL207-20

  • Zoro # G0833515

product price:  $311.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SUCPPL207-20
Zoro #
G0833515
UPC #
-
Country of Origin
Multiple

Dimensions

Bore Diameter
1-1/4 in
Center Height
1-55/64 in
Mount Hole Center-to-Center Length
5 in
Mount Hole Size
0.551 in
Overall Length
6.57 in
Overall Width
1.875 in
Overall Height
3.7 in
Dimension E Max.
5 7/32 in
Dimension H
1 7/8 in
Dimension A
6 39/64 in
Dimension N
23/32 in
Dimension S
35/64 in
Dimension E Min.
4 25/32 in
Dimension W
2 23/32 in
Dimension C
1 7/8 in
Dimension G
23/32 in
Dimension B
1 11/16 in
Inner Ring Width
1.688 in
Mounting Bolt Size
M10
Base Height
0.708 in
Base Width
1.89 in
Wire Rope Length
6.562 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Insert Material
Stainless Steel
Series
Corrosion Resistant with USDA-H1 Grease
Closure
Double Sealed
Temp. Range
-4 Degrees to 230 Degrees F
Finish
None
Seal Type
Contact
Static Radial Load Capacity
2,765 lbf
Bearing Material Grade
440C
Maximum Temperature
212 Degrees F
Housing Material Grade
PBT
Mount Type
Bolt-Through
Minimum Temperature
-4 Degrees F
Number of Mount Holes
2
Resistance Properties
Corrosion Resistant
Lubricant Material
FDA/USDA-H1 Solid Grease
Bore Type
Cylindrical
Dynamic Radial Load Capacity
4,945 lbf
Seal Material
Silicone
Maximum Speed
3700 RPM

Description

Pillow Block Bearing, Base Height 0.708 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 1 55/64 in, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 5 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 3.687 in, Overall Length 6.562 in
