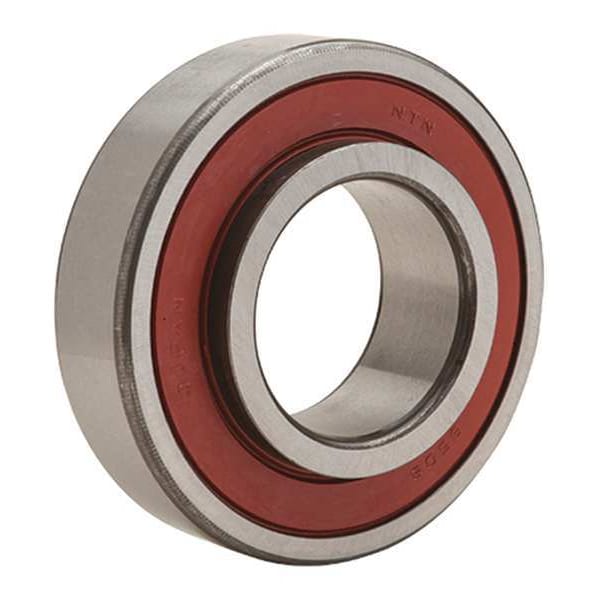

Radial Ball Bearing, Nylon, 0.7200 In. W

  • Mfr # 203RRAR10

  • Zoro # G3136235

product price:  $23.19
/ea

Key Features

Bearing Type
Agricultural
Single Row/Double Row
Single Row
System of Measurement
Inch
Seal/Shield Type
Double Sealed
Bore Dia.
0.635 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
203RRAR10
Zoro #
G3136235
UPC #
-
Country of Origin
Japan

Dimensions

Bore Dia.
0.635 in
Outside Dia.
1.5748 in
Width
0.72 in
Bore Diameter
41/64 in
Outside Diameter
1-37/64 in
Outer Ring Width
0.72 in
Outside Dia. Tolerance
+0/-0.0005 in
Outside Diameter Tolerance
+0.0000/-0.0005 in
Bore Diameter Tolerance
+0.0000/-0.0003 in

Details

Item
Radial Ball Bearing
Bearing Type
Agricultural
Single Row/Double Row
Single Row
System of Measurement
Inch
Seal/Shield Type
Double Sealed
Type
Agricultural
Bearing Industry Number
Special Radial Ball
ABEC Rating
1
Closure
Double Sealed
Number of Rows
1
Ring Material
Alloy Steel
Ball Material
Alloy Steel
Cage Material
Nylon
Bearing Material
Steel
Industry Number
3VX630
Max. RPM
8,000 RPM
Static Load Capacity
1,030 lb
Bore Tolerance
+0/-0.0003 in
Seal Material
Nitrile
Dynamic Load Capacity
2,160 lb
Lubrication
Polyrex EM
Temp. Range
-13 Degrees to 250 Degrees F
ABEC Tolerance
1
Maximum Temperature
248 Degrees F
Retaining Ring Groove
No
Minimum Temperature
-22 Degrees F
Flange Type
Non-Flanged
Dynamic Radial Load Capacity
2,160 lbf
Lubricant Material
Shell Alvania #3
Static Radial Load Capacity
1,030 lbf
Maximum Axial Load
2,160 lbf
Includes Retaining Ring
No
Seal Type
Contact
Maximum Speed
8,000 RPM
Bearing Lubrication
Maintenance-Free
Series
Agriculture
Outer Ring Type
Straight
Internal Clearance
C3
For Environment
Highly Dusty and Dirty

Description

Radial Ball Bearing, Bearing Industry Number Special Radial Ball, Bore Diameter 5/8 in, Closure Double Sealed, For Environment Highly Dusty and Dirty, Outer Ring Width 0.5 in, Outside Diameter 1 9/16 in, Ring Material Steel, Seal Type Contact, System of Measurement Inch, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0.0000/-0.0003 in, Dynamic Radial Load Capacity 2,160 lbf, Flange Diameter Not Applicable, Flange Thickness Not Applicable
