Shop NTN

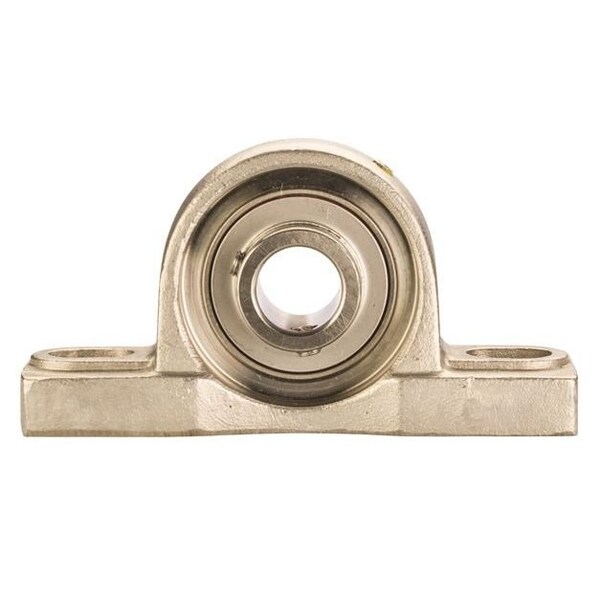

Stainless Steel Pillow Block

  • Mfr # SUCP205-16FG1

  • Zoro # G423654511


product price:
$
291.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screws
Maximum Speed
5,100 RPM
System of Measurement
Inch
Expansion Type
Fixed
Overall Height
2.76 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SUCP205-16FG1
Zoro #
G423654511
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
2.76 in
Center Height
1 7/16 in
Mounting Bolt Size
3/8, M10
Bore Diameter
1 in
Overall Length
5.51 in
Mount Hole Center-to-Center Length
4 1/8 in
Overall Width
1.5 in
Length
5.51 in

Details

Item
Pillow Block Bearing
Shaft Locking Type
Set Screws
Maximum Speed
5,100 RPM
System of Measurement
Inch
Expansion Type
Fixed
Split Housing
Not Split
Standards
IP69K
Number of Mount Holes
2
Series
Sentinel Series
Bearing Lubrication
Maintenance-Free
Bearing Insert Material
Stainless Steel
Lubricant Material
H-1 Food Grade Solid Lubricant
Internal Clearance
CN
Maximum Temperature
212 Degrees F
Housing Material
Stainless Steel
Minimum Temperature
-4 Degrees F
Number of Rows
1
Features
Cap Capable, Stainless Steel Insert
For Environment
Food and Beverage
Bearing Insert Type
Radial Insert Ball
Load Direction
Radial

Description

Pillow Block Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Insert Ball, Bore Diameter 1 in, Center Height 1 7/16 in, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Stainless Steel, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Number of Mount Holes 2, Overall Height 2.76 in, Overall Length 5.51 in
