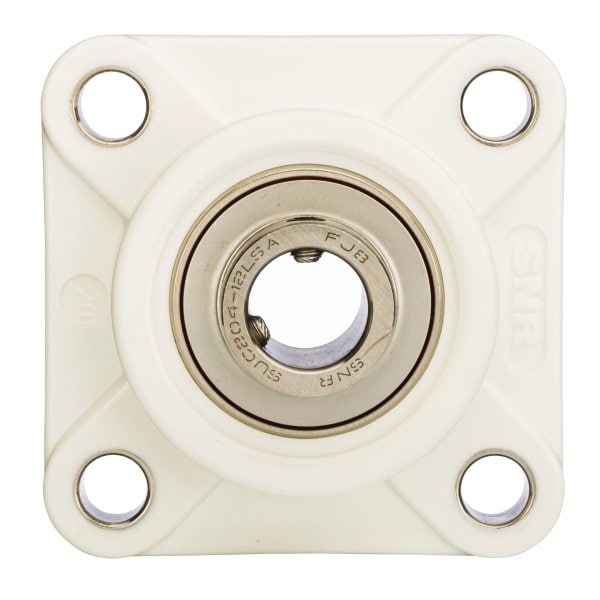

Thermoplastic Four Bolt Flange
Mfr # SUCFPL206CCFG1
Zoro # G823654906
product price:Â
$
309.99
/ea
Free Shipping & Returns
Key Features
Center Height
53.5 mm
Internal Clearance
CN
Lubricant Material
H-1 Food Grade Solid Lubricant
Bearing Material Grade
440C
Bore Type
Cylindrical
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCFPL206CCFG1
- Zoro #
- G823654906
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Center Height
- 53.5 mm
- Overall Height
- 107 mm
- Overall Width
- 58.7 mm
- Mounting Bolt Size
- 3/8, M10
- Flange Thickness
- 14.3 mm
- Overall Length
- 107 mm
- Mount Hole Size
- 11 mm
- Bore Diameter
- 30 mm
- Inner Ring Width
- 38.1 mm
- Mount Hole Center-to-Center Length
- 83 mm
- Mount Hole Center-to-Center Height
- 83 mm
- Back Side to Center Width
- 19.2 mm
- Length
- 107 mm
Description
Flange Mount Bearing, Back Side to Center Width 19.2 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Center Height 53.5 mm, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Thermoplastic, Housing Type Square, Included Bearing SUC206FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F
