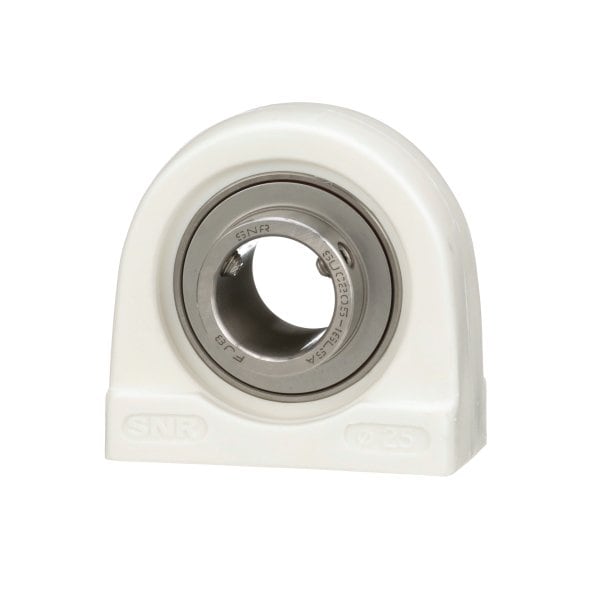

Thermoplastic Tapped Base Pillow Block
Mfr # SUCTBL204C0FG1
Zoro # G623654922
product price:Â
$
208.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screws
Expansion Type
Fixed
System of Measurement
Metric
Overall Width
64.4 mm
Split Housing
Not Split
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCTBL204C0FG1
- Zoro #
- G623654922
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Overall Width
- 64.4 mm
- Mount Hole Center-to-Center Length
- 50.8 mm
- Bore Diameter
- 20 mm
- Overall Length
- 72.8 mm
- Overall Height
- 66 mm
- Mounting Bolt Size
- 3/8"-16 UNC-2B
- Center Height
- 33.3 mm
- Length
- 72.8 mm
Description
Pillow Block Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Insert Ball, Bore Diameter 20 mm, Center Height 33.3 mm, Closure Open, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,900 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 50.8 mm, Mount Type Tapped Base, Number of Mount Holes 2
