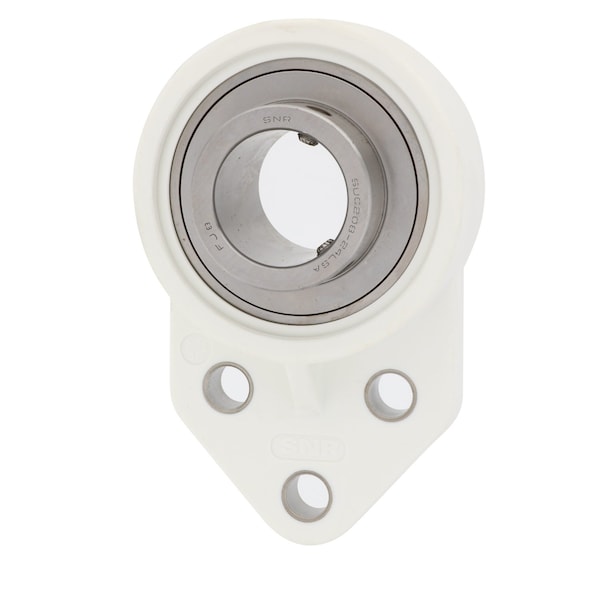

Thermoplastic Three Bolt Flange
Mfr # SUCFBL208
Zoro # G123654330
product price:Â $363.99
/ea
Free Shipping & Returns
Key Features
Overall Width
51.7 mm
Includes Bearing Cap
Bearing Cap Not Included
Housing Type
Triangular
Mount Hole Size
13.1 mm
Mounting Bolt Size
1/2, M12
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCFBL208
- Zoro #
- G123654330
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Overall Width
- 51.7 mm
- Mount Hole Size
- 13.1 mm
- Mounting Bolt Size
- 1/2, M12
- Bore Diameter
- 40 mm
- Center Height
- 109.5 mm
- Inner Ring Width
- 49.2 mm
- Overall Height
- 158.5 mm
- Mount Hole Center-to-Center Height
- 31.8 mm
- Back Side to Center Width
- 21.5 mm
- Mount Hole Center-to-Center Length
- 51 mm
- Flange Thickness
- 36 mm
- Overall Length
- 99 mm
Description
Flange Mount Bearing, Back Side to Center Width 21.5 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 40 mm, Bore Type Cylindrical, Center Height 109.5 mm, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Thermoplastic, Housing Type Triangular, Included Bearing SUC208, Lubricant Material H-1 Food Grade Grease, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F
