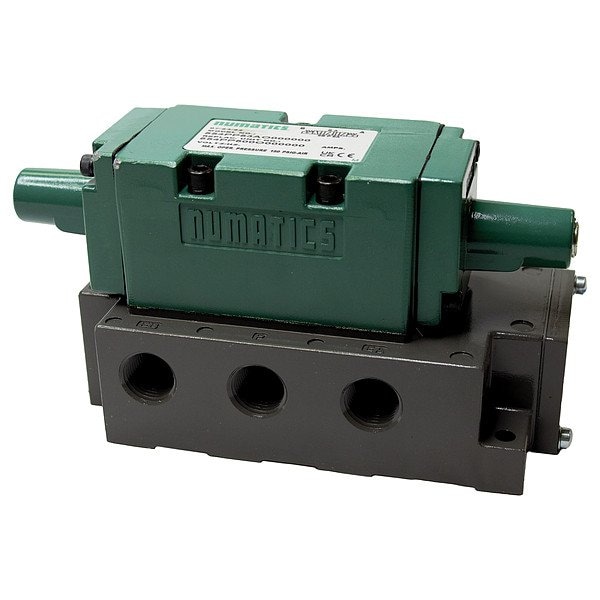

Pilot Air Control Valve, Remote Pilot
Mfr # 555PP431O000000
Zoro # G209990536
product price:Â
$
359.99
/ea
Free Shipping & Returns
Key Features
Valve Ways and Positions
4-Way/2-Position
Valve Actuator / Return
Air Pilot
Valve Port Size
3/4 in NPTF
Max. CFM - Valves
255 scfm
Max. Operating PSI
150 psig
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 555PP431O000000
- Zoro #
- G209990536
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Valve Port Size
- 3/4 in NPTF
- Width (In.)
- 3 19/50 in
- Height (In.)
- 4 1/4 in
- Length (In.)
- 8 1/2 in
- Overall Height
- 4 1/4 in
- Valve Port Connection Size
- 3/4 in
- Pilot Port Connection Size
- 3/4 in
- Overall Length
- 11 in
- Overall Width
- 3 3/8 in
- Wire Rope Length
- 11 in
Description
Pilot Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Actuator / Return Air Pilot, Valve Port Size 3/4 in NPTF, Max. CFM - Valves 255 scfm, Center Position Not Applicable, Max. Operating PSI 150 psig, Pilot Pressure 125 psi, Max. Temp. Range (F) -10 Degrees to 115 Degrees F, Coefficient of Volume 5.5, Length (In.) 8 1/2 in, Width (In.) 3 19/50 in, Height (In.) 4 1/4 in, Uses Air, Inert Gas, Vacuum
