Shop NUMATICS

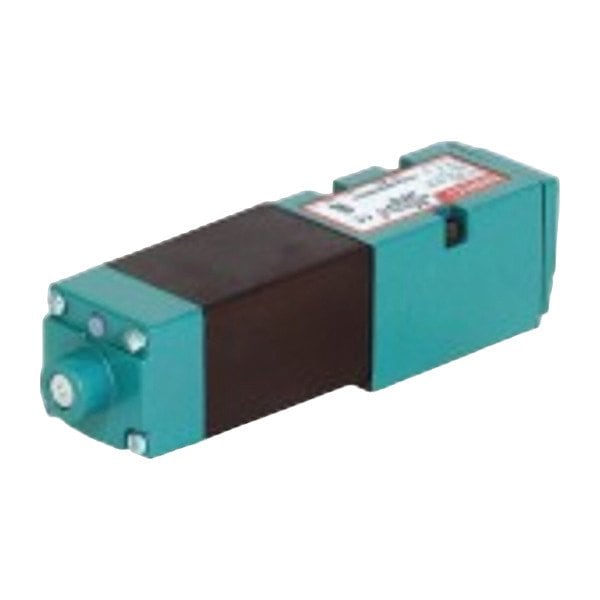

Solenoid Air Con Valve, Four-Way, 150 psi

  • Mfr # 152SA400E000061

  • Zoro # G316664290

product price:
$
255.99
/ea
Free Shipping & Returns

Key Features

Return Action
Spring Return
Body Style
Base-Mounted
Body Material
Die Cast Aluminum
NEMA Rating
4
Overall Length
9 29/32 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
152SA400E000061
Zoro #
G316664290
UPC #
-
Country of Origin
United States
Item
Directional Control Valve
Return Action
Spring Return
Body Style
Base-Mounted
Body Material
Die Cast Aluminum
NEMA Rating
4
Number of Positions
Two-Position
Power Consumption
6 W
Vacuum Rating
Vacuum Operable
Duty Cycle
Continuous
Operating Pressure - Maximum
150 psig
Series
MK15
Operating Temperature - Minimum
-10 Degrees F
Seal Material
Nitrile
Number of Ways
Four-Way
Electrical Connection Type
Plug-In
Spool Material
Stainless Steel
Coefficient of Volume (Cv)
1.4
Actuator Type
Single Solenoid
Body Features
Single
Override
Non-Locking
Includes Solenoid Coil
Solenoid Coil Included
Voltage
24V DC
Flow Rate - Maximum
65 scfm
Standards
CE Listed, CSA, UR
Operating Temperature - Maximum
115 Degrees F
Product Type
Solenoid Air Control Valve
Number of Ports
5
Response Time
12 msec

Description

Directional Control Valve, Voltage 24V DC, Center Position Not Applicable, ISO Class Not Applicable, Body Style Base-Mounted, Pilot Pressure Not Applicable, Power Consumption 6 W, Override Non-Locking, Overall Height 3 5/16 in, Overall Length 9 29/32 in, Overall Width 2 5/32 in, Standards CE Listed, CSA, UR
