Shop NUMATICS

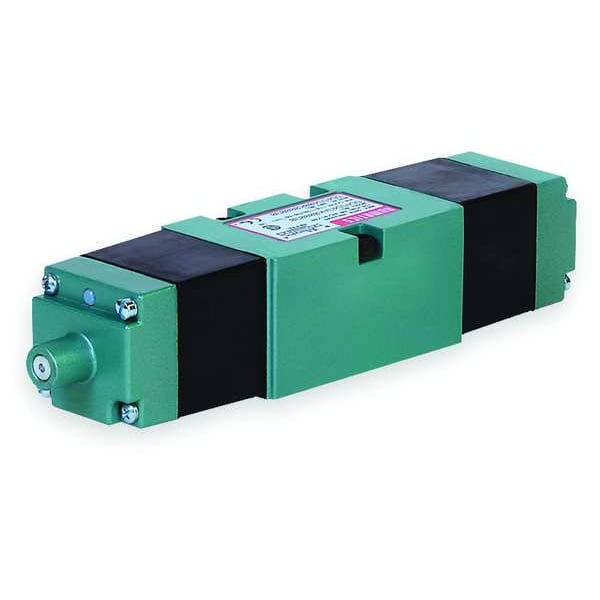

Solenoid Air Control Valve, 1/2 In, 120VAC

  • Mfr # 554SS600K000030

  • Zoro # G1619082

product price:
$
624.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Mark 55
Voltage
110 to 120V AC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
15 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
554SS600K000030
Zoro #
G1619082
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4 1/4 in
Overall Width
3 3/8 in
Overall Length
8 1/2 in
Pilot Port Size
1/2 in NPT
Pipe Size
1/2 in
Pilot Port Connection Size
1/2 in
Inlet Port Connection Size
1/2 in
Wire Rope Length
8 1/2 in
Length
8 1/2 in

Details

Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Mark 55
Voltage
110 to 120V AC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
15 psi
Power Consumption
5.6 W
Coefficient of Volume
5.5
Vacuum Range
0 to 28" Hg
Center Position
Closed
Body Material
Steel
Override
Non-Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
AC Plug-In w/Light
Valve Ways and Positions
4-Way/3-Position
NEMA Classification
NEMA 4
Shifting Technology
Spool & Sleeve
Standards
Class I Div 2, Class II Div 2, CSA Certified
Valve Vacuum Range
0 to 28 in Hg
Ambient Temp. Range
-10 Degrees to 115 Degrees F
Max. CFM - Valves
253 cfm
Pressure Range
0 to 150 psi
Operational Pressure Range
0 to 150 psi
CFM
253
Air Valve Type
4-Way, 3-Position
Number of Positions
Three-Position
Number of Ways
Four-Way
Operating Temperature - Maximum
115 Degrees F
Exhaust Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Flow Rate - Maximum
232 cfm
Inlet Port Connection Gender
Female
Valve Type
Spool
Pilot Type
Internal Pilot, Remote Pilot
Coefficient of Volume (Cv)
5
Vacuum Rating
Vacuum Operable
Includes Mounting Hardware
Hardware Not Included
Operating Temperature - Minimum
-10 Degrees F
Return Action
Solenoid Return
Body Features
Single
Pilot Port Connection Gender
Female
Application
Automotive, Bottling, Pressing, Stamping, Tire Manufacturing
Electrical Connection Type
Plug-In
Pilot Port Connection Type
NPT
Operating Pressure - Maximum
150 psi
NEMA Rating
4
Number of Ports
5
Actuator Type
Double Solenoid
Duty Cycle
Continuous
For Media
Air, Inert Gas
Spool Material
Stainless Steel
Poppet Material
Aluminum
Operating Pressure - Minimum
14 psi
Product Type
Solenoid Air Control Valve
Inlet Port Connection Type
NPT

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 110 to 120V AC, Center Position Closed, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Pipe Size 1/2 in, Max. CFM - Valves 253 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Body Style Base-Mounted, Pilot Port Size 1/2 in NPT, Pilot Pressure 15 psi, Coefficient of Volume 5.5, AC Plug-In w/Light Electrical Connections
