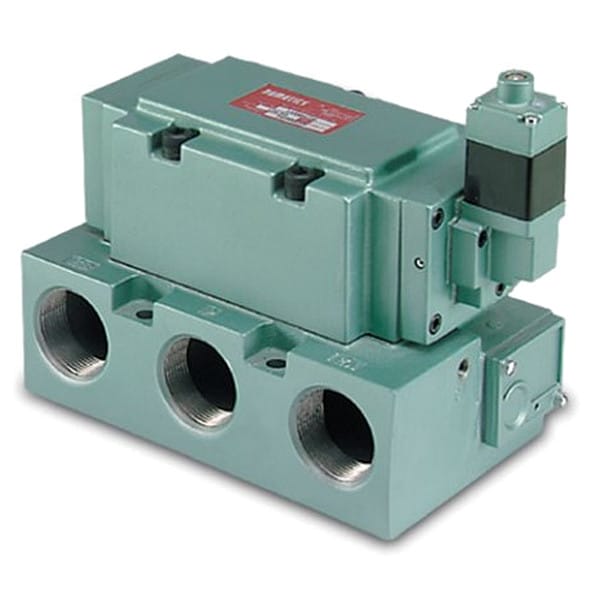

Solenoid Air Control Valve, 1/2 In, 24VDC

NUMATICS| Zoro #: G0268511| Mfr #: 554BA400MT00061

$209.90 /ea

This item ships free. DetailsStandard ground shipping
Details:
CFM: 253
Coefficient of Volume: 5.5
Electrical Connections: DC Plug-In w/Light
Save 15%. Sign up for Z-mail.

Technical Specifications

Zoro #: G0268511 Mfr #: 554BA400MT00061
Air Valve Type: 4-Way, 2-PositionNEMA Classification: NEMA 4
Shifting Technology: Spool & SleeveVacuum Range: 0 to 28" Hg
Item: Solenoid Air Control ValveStandards: CE, CSA
Voltage: 24VDCPressure Range: 20 to 150 psi
Electrical Connections: DC Plug-In w/LightPower Consumption: 4.0W
Coefficient of Volume: 5.5Pipe Size: 1/2"
CFM: 253Pilot Pressure: 20 to 125 psig
Overall Width: 2-9/16"Overall Length: 8-1/2"
Overall Height: 2-3/16"Pilot Port Size: 1/2" NPT
Body Style: Body PortedOverride: Non-Locking Flush
Ambient Temp. Range: -10 Degrees to 115 Degrees FActuator/Return: Solenoid Air Pilot/Spring
Country of Origin (subject to change): United States

Product Description

Solenoid Air Control Valve, 4-Way, 2-Position, Actuator/Return Solenoid Air Pilot/Spring, Body Style Body Ported, Pipe Size 1/2 In., Voltage 24VDC, 253 CFM, Pilot Port Size 1/2 In. NPT, Pilot Pressure 20 to 125 psig, Coefficient of Volume 5.5, DC Plug-In w/Light Electrical Connections, Shifting Technology Spool & Sleeve, Power Consumption 4.0W, Pressure Range 20 to 150 psi, Vacuum Range 0 to 28 In. Hg, Ambient Temp. Range -10 Degrees to 115 Degrees F, Override Non-Locking Flush
