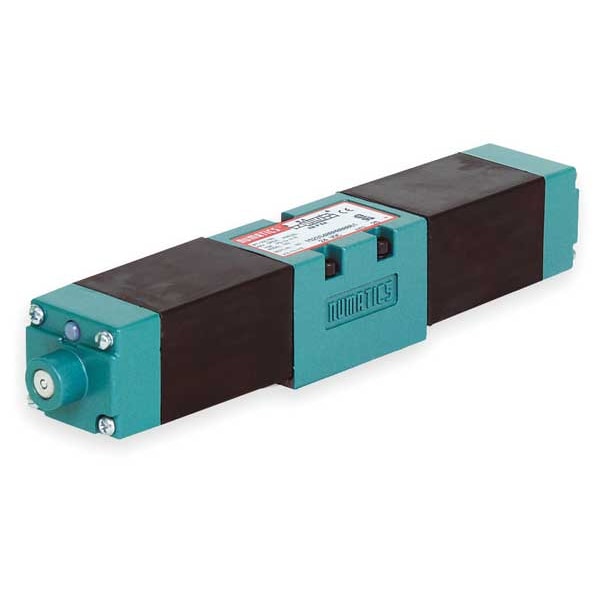

Solenoid Air Control Valve, 1/4 In, 24VDC

NUMATICS| Zoro #: G1461284| Mfr #: 152SS400M000061

$179.07 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1461284 Mfr #: 152SS400M000061
Vacuum Range: 0 to 28" HgShifting Technology: Spool & Sleeve
Air Valve Type: 4-Way, 2-PositionNEMA Classification: NEMA 4
Standards: CE, CSA, ULItem: Solenoid Air Control Valve
CFM: 69Overall Width: 1-3/8"
Overall Length: 9-7/8"Overall Height: 1-1/2"
Body Style: Body PortedOverride: Non-Locking Flush
Ambient Temp. Range: -10 Degrees to 115 Degrees FActuator/Return: Solenoid/Solenoid
Voltage: 24VDCPressure Range: 0 to 150 psi
Electrical Connections: DC Plug-In w/LightPower Consumption: 6.0W
Coefficient of Volume: 1.5Pilot Port Size: 1/4" NPT
Pipe Size: 1/4"Country of Origin (subject to change): United States

Product Description

Solenoid Air Control Valve, 4-Way, 2-Position, Actuator/Return Solenoid/Solenoid, Body Style Body Ported, Pipe Size 1/4 In., Voltage 24VDC, 69 CFM, Pilot Port Size 1/4 In. NPT, Coefficient of Volume 1.5, DC Plug-In w/Light Electrical Connections, Shifting Technology Spool & Sleeve, Power Consumption 6.0W, Pressure Range 0 to 150 psi, Vacuum Range 0 to 28 In. Hg, Ambient Temp. Range -10 Degrees to 115 Degrees F, Override Non-Locking Flush, Overall Height 1-1/2 In., Overall Length 9-7/8 In.
