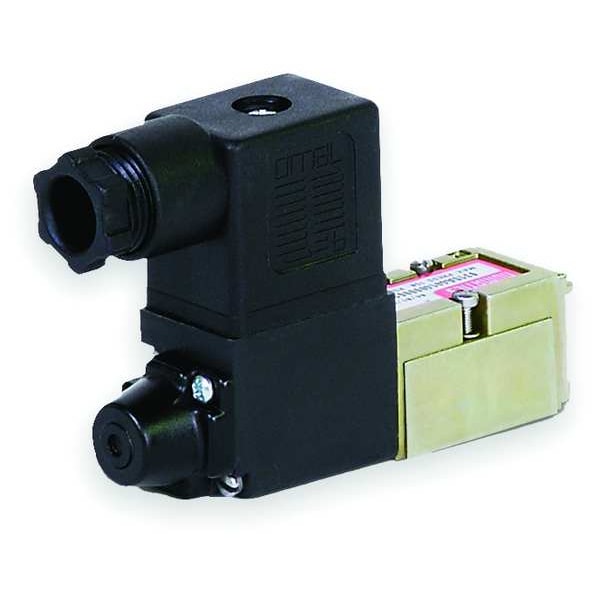

Solenoid Air Control Valve, 1/8 In, 24VDC

  • Mfr # 031SA4004060T61

  • Zoro # G3489017

product price:
$
108.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Mark 3
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
0 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
031SA4004060T61
Zoro #
G3489017
UPC #
-
Country of Origin
China

Dimensions

Overall Height
1 21/32 in
Overall Width
1 3/8 in
Overall Length
4 7/8 in
Pilot Port Size
1/8 in NPT
Pipe Size
1/8 in
Wire Rope Length
4 7/8 in
Length
4 7/8 in

Details

Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Mark 3
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
0 psi
Power Consumption
6 W
Coefficient of Volume
0.35
Vacuum Range
0 to 28" Hg
Body Material
Steel
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
DIN DC Plug-In Solenoid
Valve Ways and Positions
4-Way/2-Position
Operational Pressure Range
0 to 150 psi
Standards
CSA Certified, UL Listed
NEMA Classification
NEMA 4
Ambient Temp. Range
-10 Degrees to 115 Degrees F
Pressure Range
0 to 150 psi
Max. CFM - Valves
16 cfm
CFM
16
Valve Vacuum Range
0 to 28 in Hg
Air Valve Type
4-Way, 2-Position
Shifting Technology
Spool & Sleeve
Number of Ways
Four-Way
Number of Positions
Two-Position
Application
Bottling, High Cycle-Rate Machines, Pressing, Stamping, Tire Manufacturing
Electrical Connection Type
Plug-In
Vacuum Rating
Vacuum Operable
Operating Pressure - Minimum
14 psi
Inlet Port Connection Gender
Female
Operating Temperature - Maximum
115 Degrees F
Pilot Type
Internal Pilot, Remote Pilot
Product Type
Solenoid Air Control Valve
NEMA Rating
4
Poppet Material
Aluminum
Valve Type
Spool
Operating Temperature - Minimum
-10 Degrees F
Actuator Type
Single Solenoid
Number of Ports
5
Body Features
Single
Flow Rate - Maximum
16.21 cfm
Operating Pressure - Maximum
150 psi
Pilot Port Connection Gender
Female
Inlet Port Connection Type
NPT
Exhaust Port Connection Gender
Female
Coefficient of Volume (Cv)
0.35
For Media
Air, Inert Gas
Pilot Port Connection Type
NPT
Includes Mounting Hardware
Hardware Not Included
Return Action
Spring Return
Spool Material
Stainless Steel
Duty Cycle
Continuous
Includes Solenoid Coil
Solenoid Coil Included

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/8 in, Max. CFM - Valves 16 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Body Style Base-Mounted, Pilot Port Size 1/8 in NPT, Pilot Pressure 0 psi, Coefficient of Volume 0.35, DIN DC Plug-In Solenoid Electrical Connections
