  11. Surge Protection Device, 3 Phase, 480V, 3 Poles, 3 Wires + Ground

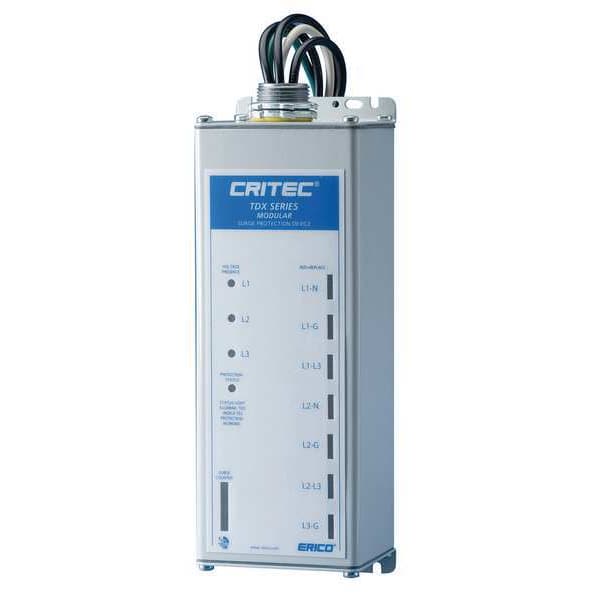

Nvent Erico Surge Protection Device, 3 Phase, 480V, 3 Poles, 3 Wires + Ground TDX100M480D - main

Surge Protection Device, 3 Phase, 480V, 3 Poles, 3 Wires + Ground

  • Mfr # TDX100M480D

  • Zoro # G4376723

product price: $1,426.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
480V
Number of Poles
3
Voltage Protection Rating
1800V (L-G, L-L)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDX100M480D
Zoro #
G4376723
UPC #
-
Country of Origin
China

Dimensions

Length
9.45 in
Depth
3.07 in
Width
3.31 in
Chase Nipple Size
3/4 in
Lead Size
5.26-5.26
Ground Lead Length
914
Lead Length
762

Details

Item
Surge Protection Device
Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
480V
Number of Poles
3
Voltage Protection Rating
1800V (L-G, L-L)
Number of Wires
3 Wires + Ground
Modes of Protection
L-G, L-L
Max. Surge Current per Mode
100 kA
Max. Surge Current per Phase
100 kA
Nominal Discharge Current
40 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
No
Max. Continuing Operating Voltage
610/1220V AC
Enclosure NEMA Rating
NEMA 4
IP Rating
IP65
Enclosure Material
Metal
Wire Gauge
10 AWG
Includes
Voltage Free Contact
Lightning Impulse Current
12.5 kA
Standards
ANSI/IEEE, C-Tick, CE, IEC 61643-1, UL 1449 Edition 3 Type 1/2
Modular / Nonmodular
Modular
Min. Operating Temp.
-40 Degrees F
Max. Operating Temp.
176 Degrees F
UL SPD Type
Type 1/2
Color
Gray
Amps
100 kA
System Connection
Parallel
Basic Material
Metallic
Mounting
3/4€ straight nipple
Status Indicator
Audible Alarm, LED Light, Mechanical Flag
Includes Surge Counter
No
Max Continuous Operating Voltage (Uc)
550 VAC
Complies With
ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C
Impulse Current (Iimp), Per Mode
12.5
Service Configuration
Delta
Status Indication
LED
Max Discharge Current (Imax), Per Phase
100
Voltage Protection Rating (VPR), L-L
1800 V @ 3 kA
Temperature
-120
Certification Details
UL® 1449 Edition 5 Type 1/2, 20 kA Mode
Replacement Module
TDS150M560
Nominal Discharge Current (In), IEC
40
Stand-off Voltage
790 VAC
Remote Contacts
Yes
Nominal Discharge Current (In), UL
20
Frequency
50-60.00
Technology
TD technology with thermal disconnect

Description

Surge Protection Device, Metallic, Chase Nipple Size 3/4 in, Gray, Amps 100 kA, Depth 3.07 in, Enclosure Material Metal, Enclosure NEMA Rating 4
