Shop NVENT HOFFMAN

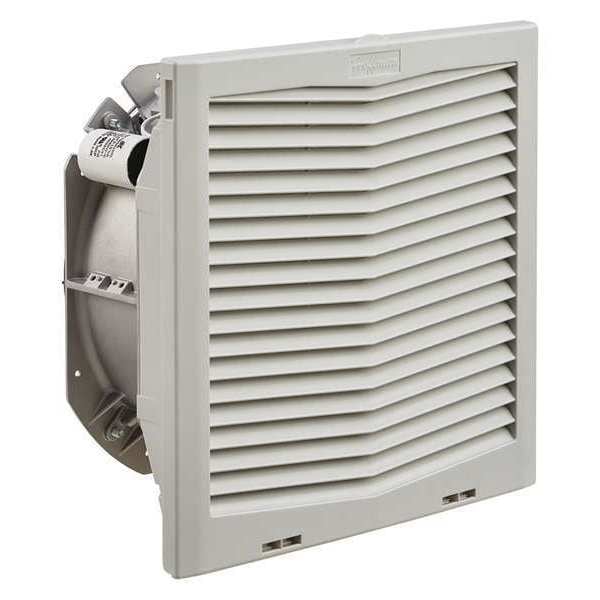

Filter Fan, Plastic, 12.80" H x 12.82" L

  • Mfr # HF1316424

  • Zoro # G7883657

product price:
$
638.26
/ea
Free Shipping & Returns

Key Features

Height
12 13/16 in
Width
12 13/16 in
Depth
6 5/16 in
Finish
Unfinished
Material
Plastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HF1316424
Zoro #
G7883657
UPC #
783510381035
Country of Origin
Taiwan, Province of China

Dimensions

Height
12 13/16 in
Width
12 13/16 in
Depth
6 5/16 in
Fan Height
12-51/64"
Length
12.82"
Fan Depth
6-3/8"
Fan Width
12-51/64"
Depth (D) (inch)
6.31
Height (H) (inch)
12.8
Depth (D) (millimetre)
160
Size
12.8 x 12.82 x 6.31 in
Height (H) (millimetre)
325
Width (W) (millimetre)
326
Width (W) (inch)
12.82

Details

Item
Axial Fan
Finish
Unfinished
Material
Plastic
Includes
Mounting Hardware
NEMA Enclosure Type
12
Fan Shape
Square
Fan Voltage
115VAC
Gasket
Silicone
CFM @ 0.000-In. SP
55 cfm, 72 cfm
For Use With
Electrical Control Enclosures
Sub-Category
Other Accessories
Fan Mounting Location
Wall
Electrical Connection - Fans
Terminals
Housing Material
Plastic
Voltage
115V AC
Environmental Applications
Equipment Cooling
IP Rating
IP55
Voltage AC (volt)
100-100.00
Operating Temperature (degree Fahrenheit)
14-131.00
Color
Light Gray
Airflow (cubic foot per minute)
484
Amperage Rating
1.08/1.18 A
Operating Temperature (degree Celsius)
-65
Voltage Rating
115 VAC
Max Current (ampere)
1.18
Airflow (cubic metre per hour)
822
Nominal Voltage (volt)
115
Ambient Temperature
14 to 131 deg F
Color Code
RAL 7035
Flow Rate
484 CFM
Standards
UL/cUL Listed; File No. E482010; CE; EAC; Type 12 standard on all models; IP54 standard option on all models except HF13; IP55 standard option on all models except HF04
Max Current
1.18 A
Voltage AC
100 V
Nominal Voltage
115 V
Operating Temperature
14 - 131 °F / -10 to 55 °C
Airflow
484 ft³/min / 822 m³/h
Requires
Cord Set (Not Included)
Amps
1.18 A
Environment Rating
Wet

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. Not Applicable, Height 12 13/16 in, Diameter Not Applicable, Depth 6 5/16 in, Width 12 13/16 in, CFM @ 0.000-In. SP 55 cfm, 72 cfm, Voltage 115V AC, 1.18 A Amps, Electrical Connection - Fans Terminals, Sound Level Not Applicable, IP Rating IP55, Fan Mounting Location Wall, Bearing Type Not Applicable, Not Applicable RPM, Blade Material Not Applicable, Housing Material Plastic, Requires Cord Set (Not Included), Includes Mounting Hardware
