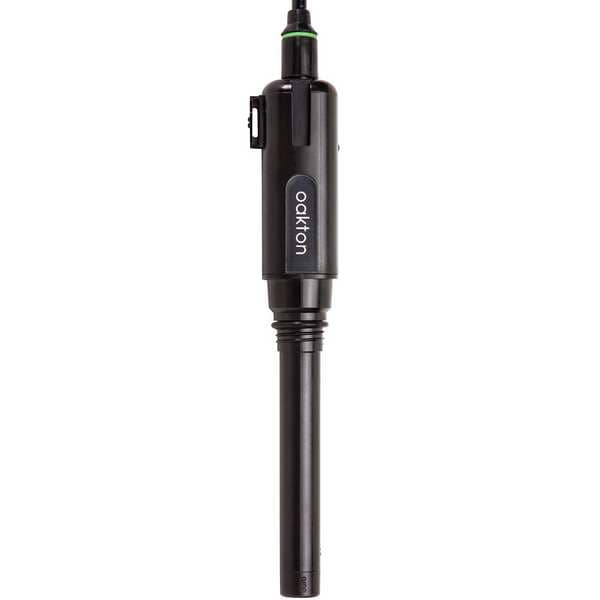

Optical Do Sensor 5m

  • Mfr # 35660-98

  • Zoro # G001775379


product price: $1,291.99
/ea
Free Shipping & Returns

Key Features

Type
Dissolved Oxygen Sensor
Testing Parameter
Dissolved Oxygen
Measurement Range
0 to 20 mg/L
Operating Temp. Range
0 Degrees to 130 Degrees C
Body Material
ABS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
35660-98
Zoro #
G001775379
UPC #
-
Country of Origin
Japan

Dimensions

Diameter
12 mm
Length
215 mm
Cable Length
5 m
Manufacturers Warranty Length
3 yr
Overall Length
215 mm
Overall Diameter
12 mm
Manufacturer Warranty Length
1 yr

Details

Type
Dissolved Oxygen Sensor
Testing Parameter
Dissolved Oxygen
Measurement Range
0 to 20 mg/L
Operating Temp. Range
0 Degrees to 130 Degrees C
Body Material
ABS
Connector
6 pin DIN
Tip Shape
Flat
Reference
Optical
Sub-Category
Sensors
Standards
CE
Item
Optical DO Sensor
For Use With
Oakton(R) 300 Series Meters
Includes
Calibration Bottle
Product Type
Optical Dissolved Oxygen Sensor
Operating Temperature - Maximum
122 Degrees F
Operating Temperature - Minimum
32 Degrees F
Material
ABS Plastic, Polycarbonate
Test Parameters
Dissolved Oxygen
Range
0 to 20 mg/L
Connection Type
6 pin DIN
Disposability
Reusable

Description

Optical DO Sensor, Dissolved Oxygen Sensor, Testing Parameter Dissolved Oxygen, Measurement Range 0 to 20 mg/L, Tip Shape Flat, Operating Temp. Range 0 Degrees to 130 Degrees C, Body Material ABS, Diameter 12 mm, Length 215 mm, Cable Length 5 m, Connector 6 pin DIN, Amplifier Not Applicable, For Use With Oakton(R) 300 Series Meters, Standards CE, Shelf Life Not Applicable, Reference Optical, Junction Not Applicable, Includes Calibration Bottle, Manufacturers Warranty Length 3 yr
