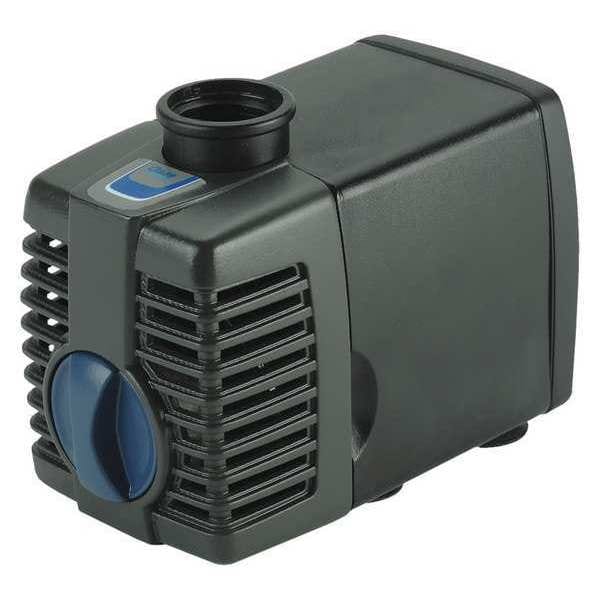

Fountain Pump, 1/64 HP, 120V, 7.9 ft. Head

  • Mfr # 45416

  • Zoro # G7770500


product price: $54.15
/ea

Key Features

HP
1/64 hp
Voltage
120V AC
Amps
0.6 A
GPH of Water @ 5 Ft. of Head
235
Max. Head
7.9 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45416
Zoro #
G7770500
UPC #
871980009181
Country of Origin
China

Dimensions

Length
4 3/8 in
Height
3 3/8 in
Cord Length
6 ft
Cord Size
18
Manufacturers Warranty Length
3 yr
Width
2 3/8 in
Overall Width
2.36 in
Spray Height (Maximum)
7.9 ft
Minimum Depth Required
4 in
Overall Length
4.38 in
Solid Diameter (Maximum)
0.06 in
Overall Height
3.35 in
Manufacturer Warranty Length
2 yr

Details

Item
Fountain Pump
HP
1/64 hp
Voltage
120V AC
Amps
0.6 A
GPH of Water @ 5 Ft. of Head
235
Max. Head
7.9 ft
Hz
60
Duty
Continuous
Thermal Protection
Yes
Max. Specific Gravity
1
Impeller Type
Rotary Vane
Installation Position
Vertical
Cord Type
SJTW
Phase
Single
Impeller Material
ABS
Motor Type
Synchronous
Housing Material
ABS
Motor Enclosure
Epoxy
Includes
1/2 in, 5/8 in, 3/4 in hose adaptors, 16 ft power cord
Outlet
1/2 in, 3/4 in, 5/8 in
Agency Compliance
cETLus
Overload Protection
yes
Bearing Type
Ball
GPH of Water @ 1 Ft. of Head
2520
Full Load Amps
0.4 A
Features
Adjustable Flow Control, Grounding Plate, Smaller Plug Size for Easier Setup
Inlet
3/4 in
Wetted Materials
All
Max. Liquid Temp.
90 Degrees F
Frame
Plastic
Standards
cULus Approved
Electrical Connection Type
Plug-In
Frequency
60 Hz
Maximum Feet of Head
7.9 ft
Minimum Flow Rate
0 gph
Nameplate Voltage
120V AC
Motor Frame Designation
Plastic
Horsepower
1/64 hp
Duty Cycle
Continuous
Maximum Flow Rate
525 gph
Thermal Overload Protection
Yes
Pump Mounting Orientation
Submersible
Specific Gravity (Maximum)
1
Maximum Media Temperature
90 Degrees F

Description

Fountain Pump, Nameplate Voltage 120V AC, Horsepower 1/64 hp, Solid Diameter (Maximum) 0.06 in, Minimum Depth Required 4 in, Spray Height (Maximum) 7.9 ft, Spray Width (Maximum) Not Applicable, Cord Length 6 ft, Amps 0.6 A, Duty Cycle Continuous, Electrical Connection Type Plug-In, Features Adjustable Flow Control, Grounding Plate, Smaller Plug Size for Easier Setup, Maximum Feet of Head 7.9 ft, Maximum Flow Rate 525 gph, Minimum Flow Rate 0 gph, Frequency 60 Hz, Housing Material ABS
