  9. Waterfall Pump, 1/2 HP, 120V, 23 ft. Head

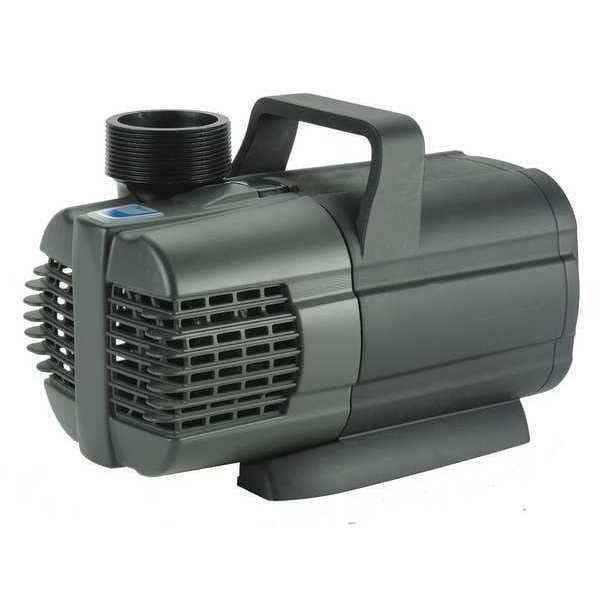

Oase Waterfall Pump, 1/2 HP, 120V, 23 ft. Head 45424 - main

Waterfall Pump, 1/2 HP, 120V, 23 ft. Head

  • Mfr # 45424

  • Zoro # G7770528

product price: $345.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
4,320
Amps
2.5 A
Max. Head
23 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45424
Zoro #
G7770528
UPC #
871980009259
Country of Origin
China

Dimensions

Length
9 3/8 in
Height
6 1/2 in
Cord Length
20 ft
Cord Size
18
Max. Dia. Solids
1/6 in
Width
5 3/8 in
Manufacturers Warranty Length
3 yr
Overall Height
6.5 in
Manufacturer Warranty Length
2 yr
Overall Width
5.4 in
Solid Diameter (Maximum)
0.17 in
Compatible Discharge Pipe Size
1 1/2 in
Overall Length
9.4 in

Details

Item
Waterfall Pump
HP
1/2 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
4,320
Amps
2.5 A
Max. Head
23 ft
Hz
60
Duty
Continuous
Impeller Type
Rotary Vane
Housing Material
ABS
Thermal Protection
Yes
Bearing Type
Ball
Inlet
2 in
Agency Compliance
cETLus
Installation Position
Vertical
Features
Energy Efficient Motor, Grounding Plate
GPH of Water @ 1 Ft. of Head
5,000
Impeller Material
ABS
Max. Specific Gravity
1
Includes
1 1/2 in Hose Adapter
GPH of Water @ 20 Ft. of Head
333
Motor Type
Synchronous
Max. Liquid Temp.
90 Degrees F
Motor Enclosure
Epoxy
Overload Protection
yes
GPH of Water @ 10 Ft. of Head
3,580
Full Load Amps
2.5 A
Cord Type
SJTW
Wetted Materials
All
Outlet
2 in
Frame
Plastic
Phase
Single
Standards
cETLus Listed
Maximum Feet of Head
23 ft
Minimum Flow Rate
0 gpm
Frequency
60 Hz
Thermal Overload Protection
Yes
Intake Type
Screened
Horsepower
1/2 hp
Flow Rate @ 5 ft of Head (Maximum)
73.3 gpm
Pump Type
Waterfall Pump
Maximum Media Temperature
90 Degrees F
Flow Rate @ 20 ft of Head (Maximum)
1.5 gpm
Impeller Design
Rotary Vane
Nameplate Voltage
120V AC
Maximum Flow Rate
85.8 gpm
Flow Rate @ 15 ft of Head (Maximum)
40 gpm
Flow Rate @ 1 ft of Head (Maximum)
85 gpm
Duty Cycle
Continuous
Electrical Connection Type
Plug-In
Submersible
Yes
Discharge Type
Barbed
Pump Housing Material
Plastic
Flow Rate @ 10 ft of Head (Maximum)
58.3 gpm

Description

Waterfall Pump, Pump Housing Material Plastic, Horsepower 1/2 hp, Nameplate Voltage 120V AC, Maximum Feet of Head 23 ft, Flow Rate @ 5 ft of Head (Maximum) 73.3 gpm, Flow Rate @ 10 ft of Head (Maximum) 58.3 gpm, Flow Rate @ 15 ft of Head (Maximum) 40 gpm, Flow Rate @ 20 ft of Head (Maximum) 1.5 gpm, Compatible Intake Pipe Size Not Applicable, Compatible Discharge Pipe Size 1 1/2 in, Intake Type Screened, Discharge Type Barbed, Cord Length 20 ft, Pump Type Waterfall Pump, Submersible Yes
