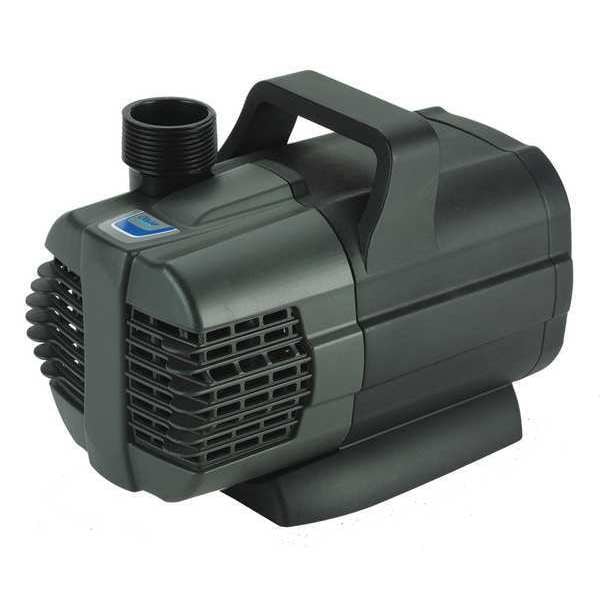

Oase Waterfall Pump, 1/5 HP, 120V, 20 ft. Head 45422 - main

Waterfall Pump, 1/5 HP, 120V, 20 ft. Head

  • Mfr # 45422

  • Zoro # G7770519

product price: $240.10
/ea
Free Shipping & Returns

Key Features

HP
1/5 hp
Voltage
120V AC
Amps
1.5 A
GPH of Water @ 5 Ft. of Head
1,900
Max. Head
20 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45422
Zoro #
G7770519
UPC #
871980009235
Country of Origin
China

Dimensions

Length
8 3/8 in
Height
6 1/4 in
Cord Length
20 ft
Width
5 in
Manufacturers Warranty Length
3 yr
Max. Dia. Solids
1/6 in
Cord Size
18
Solid Diameter (Maximum)
0.17 in
Compatible Discharge Pipe Size
1 1/4 in
Overall Width
5 in
Overall Height
6.2 in
Overall Length
8.4 in
Manufacturer Warranty Length
2 yr

Details

Item
Waterfall Pump
HP
1/5 hp
Voltage
120V AC
Amps
1.5 A
GPH of Water @ 5 Ft. of Head
1,900
Max. Head
20 ft
Hz
60
Duty
Continuous
Thermal Protection
Yes
Max. Liquid Temp.
90 Degrees F
Motor Enclosure
Epoxy
Max. Specific Gravity
1
GPH of Water @ 1 Ft. of Head
2,200
Impeller Type
Rotary Vane
Bearing Type
Ball
Phase
Single
Features
Energy Efficient Motor, Grounding Plate
Inlet
1-1/2 in
Includes
1 1/2 in Hose Adapter
Frame
Plastic
Agency Compliance
cETLus
Motor Type
Synchronous
Cord Type
SJTW
Wetted Materials
All
Housing Material
ABS
GPH of Water @ 10 Ft. of Head
1,450
Impeller Material
ABS
Installation Position
Vertical
Outlet
1-1/4 in
Overload Protection
yes
Full Load Amps
1.5 A
Standards
cETLus Listed
Flow Rate @ 15 ft of Head (Maximum)
11.6 gpm
Minimum Flow Rate
0 gpm
Flow Rate @ 10 ft of Head (Maximum)
23.3 gpm
Pump Type
Waterfall Pump
Horsepower
1/5 hp
Electrical Connection Type
Plug-In
Maximum Media Temperature
90 Degrees F
Flow Rate @ 5 ft of Head (Maximum)
31.6 gpm
Intake Type
Screened
Flow Rate @ 1 ft of Head (Maximum)
38.3 gpm
Frequency
60 Hz
Discharge Type
Barbed
Maximum Feet of Head
20 ft
Duty Cycle
Continuous
Pump Housing Material
Plastic
Flow Rate @ 20 ft of Head (Maximum)
0 gpm
Submersible
Yes
Thermal Overload Protection
Yes
Nameplate Voltage
120V AC
Maximum Flow Rate
38.3 gpm
Impeller Design
Rotary Vane

Description

Waterfall Pump, Pump Housing Material Plastic, Horsepower 1/5 hp, Nameplate Voltage 120V AC, Maximum Feet of Head 20 ft, Flow Rate @ 5 ft of Head (Maximum) 31.6 gpm, Flow Rate @ 10 ft of Head (Maximum) 23.3 gpm, Flow Rate @ 15 ft of Head (Maximum) 11.6 gpm, Flow Rate @ 20 ft of Head (Maximum) 0 gpm, Compatible Intake Pipe Size Not Applicable, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Screened, Discharge Type Barbed, Cord Length 20 ft, Pump Type Waterfall Pump, Submersible Yes
