  9. Waterfall Pump, 1/9 HP, 120V, 16.5 ft. Head

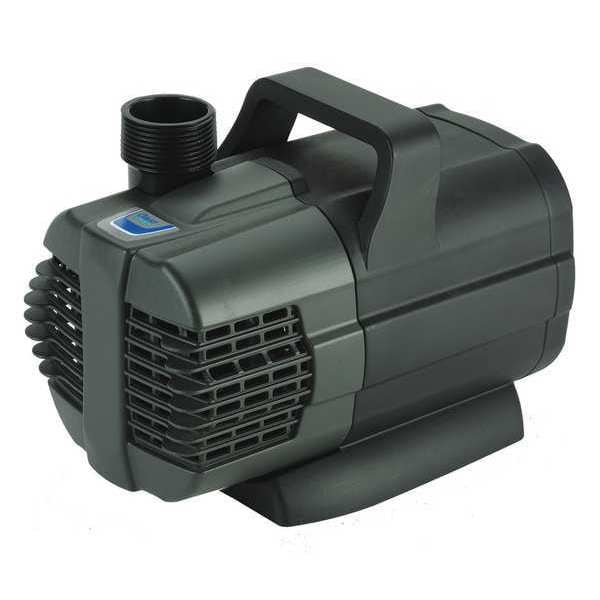

Oase Waterfall Pump, 1/9 HP, 120V, 16.5 ft. Head 45421 - main

Waterfall Pump, 1/9 HP, 120V, 16.5 ft. Head

  • Mfr # 45421

  • Zoro # G7770485

product price: $205.99
/ea
Free Shipping & Returns

Key Features

HP
1/9 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
1,200
Amps
1 A
Max. Head
16.5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45421
Zoro #
G7770485
UPC #
871980009228
Country of Origin
China

Dimensions

Length
8 3/8 in
Height
6 1/4 in
Cord Length
20 ft
Manufacturers Warranty Length
3 yr
Cord Size
18
Width
5 in
Overall Height
6.2 in
Overall Width
5 in
Overall Length
8.4 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
2 yr

Details

Item
Waterfall Pump
HP
1/9 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
1,200
Amps
1 A
Max. Head
16.5 ft
Hz
60
Duty
Continuous
Motor Type
Synchronous
Motor Enclosure
Epoxy
Features
Energy Efficient Motor, Grounding Plate
Includes
1 1/2 in Hose Adapter
Impeller Type
Rotary Vane
Bearing Type
Ball
Frame
Plastic
GPH of Water @ 1 Ft. of Head
1,580
Thermal Protection
Yes
Outlet
1-1/4 in
Phase
Single
Installation Position
Vertical
Max. Liquid Temp.
90 Degrees F
Housing Material
ABS
Agency Compliance
cETLus
Impeller Material
ABS
Inlet
1-1/2 in
Cord Type
SJTW
Wetted Materials
All
Full Load Amps
1 A
Max. Specific Gravity
1
GPH of Water @ 10 Ft. of Head
1140
Overload Protection
yes
Standards
cETLus Listed
Pump Type
Waterfall Pump
Flow Rate @ 15 ft of Head (Maximum)
3.3 gpm
Intake Type
Screened
Minimum Flow Rate
0 gpm
Maximum Feet of Head
16.5 ft
Electrical Connection Type
Plug-In
Flow Rate @ 10 ft of Head (Maximum)
11.6 gpm
Submersible
Yes
Thermal Overload Protection
Yes
Horsepower
1/9 hp
Flow Rate @ 1 ft of Head (Maximum)
27.5 gpm
Duty Cycle
Continuous
Impeller Design
Rotary Vane
Flow Rate @ 5 ft of Head (Maximum)
18.3 gpm
Pump Housing Material
Plastic
Discharge Type
Barbed
Maximum Flow Rate
27.5 gpm
Frequency
60 Hz
Nameplate Voltage
120V AC
Maximum Media Temperature
90 Degrees F

Description

Waterfall Pump, Pump Housing Material Plastic, Horsepower 1/9 hp, Nameplate Voltage 120V AC, Maximum Feet of Head 16.5 ft, Flow Rate @ 5 ft of Head (Maximum) 18.3 gpm, Flow Rate @ 10 ft of Head (Maximum) 11.6 gpm, Flow Rate @ 15 ft of Head (Maximum) 3.3 gpm, Compatible Intake Pipe Size Not Applicable, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Screened, Discharge Type Barbed, Cord Length 20 ft, Pump Type Waterfall Pump, Submersible Yes, Motor Enclosure Epoxy, Phase Single, Amps 1 A
