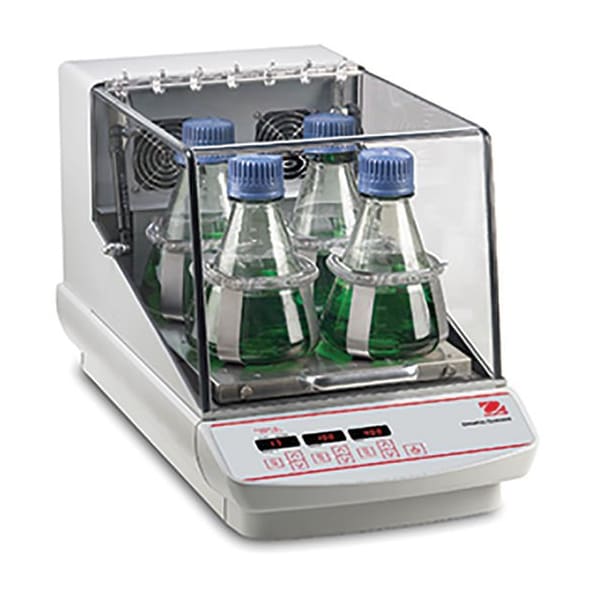

Incubating Heavy Duty Orbital Shaker, ISHD16HDG

Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity.For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides consistent shaking motion throughout the entire speed range. The chambers for the ISHD23HDG and ISHD23CDG units are large enough to hold 2 x 6 L Erlenmeyer flasks with optional clamps and platform.
MotionOrbital, 19 mm Capacity35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500 rpm Temperature RangeAmbient +5°C €“ 65°C Speed Range15 rpm €“ 500 rpm Tray Size (LxW)13 in x 11 in (330 mm x 279 mm) ControlDigital CalibrationTemperature calibrationCommunicationRS232 Dimensions25.5 in x 16 in x 14 in (648 mm x 406 mm x 356 mm) (LxHxW) Drive SystemTriple Eccentric; Brushless DC Motor Inner Dimensions13.4 in x 9.5 in x 12 in (340 mm x 241 mm x 305 mm) (LxHxW)Net Weight79.11 lb (35.9 kg) Power120V, 5A, 50/60Hz Power Consumption450 W Safety CertificationTUV Speed AccuracyAbove 100rpm +/- 1%, Below 100rpm /- 1 rpm Timer1 second €“ 160 hours Tray ConstructionAluminumUniformity± 0.5°C at 37°C Working Environment59°F €“ 90°F, 80%RH, non-condensing (15°C €“ 32°C, 80%RH, non-condensing)Shipping Weight: 84.9999 lbs
Research or further manufacturing use only, not for food or drug use.
