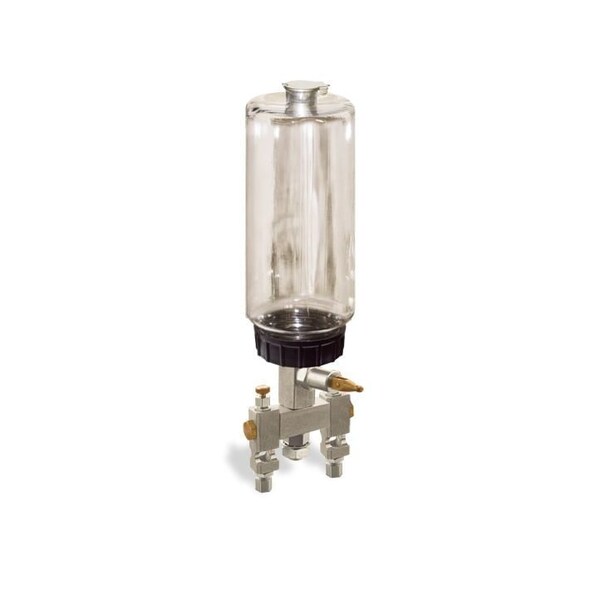

1 qt Capacity Multiple Feed Manual Lubricator with Polycarbonate Reservoir - 2

Item # B3193-03202B111GW, Multiple Feed Manual Lubricator, 1 qt Polycarbonate Reservoir With Swivel Lid, 2 FeedsMultiple Feed Manual Lubricators are ideal for continuous operation. Liquid is dispensed when the lubricator is turned on with a toggle shutoff using the toggle does not affect the metering adjustment .Anywhere from 2 to 24 valves may be connected to one reservoir please consult factory for valve combinations not shown. The modular construction allows for additional valves to be added at a later date if needed part no. B3151-01B11GW .The reservoir and sight are vented to allow liquid to reach the brush by gravity. An adjustable precision needle valve controls the flow rate; it has a friction lock to guard against loosening from vibration. Drop feeding can be observed through the glass viewing window in the valve body .This lubricator features a polycarbonate reservoir, polypropylene base, aluminum alloy valve body, plated steel shank, Buna-N seals and 5/8-18 mounting thread. It features a cap that swivels out of the way for easier filling, while remaining attached to the reservoir .All valves feature a 1/4 OD tube outlet. The diameter of the reservoir is 3 5/8. Total height of the lubricator is 13 7/16, and total width of the valves is 3 15/16 .
