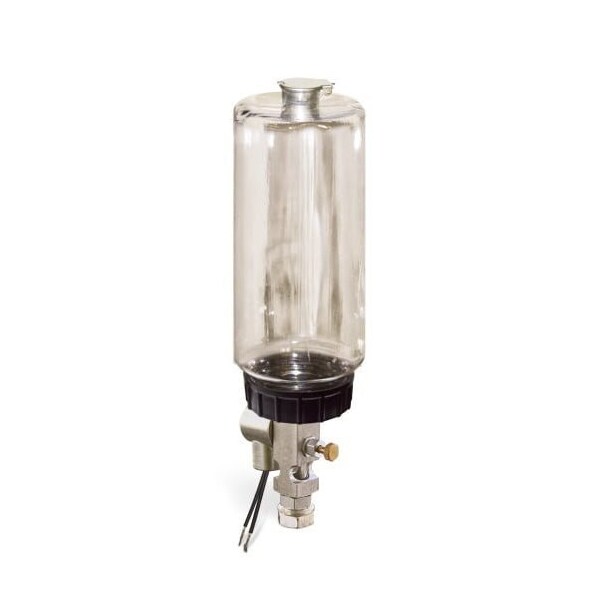

1 qt Capacity Single Feed Electro Lubricator w/Polycarbonate Reservoir - 1/8in. Female NPT, 24VDC
Mfr # B1763-0321B1S5024DW
Zoro # G716547346
product price:Â
$
172.99
/ea
Free Shipping & Returns
Key Features
Overall Height
12 in
Overall Width
5 in
Body Material
Polycarbonate
Overall Length
5 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- B1763-0321B1S5024DW
- Zoro #
- G716547346
- UPC #
- -
- Country of Origin
- United States
- Body Material
- Polycarbonate
Description
Item # B1763-0321B1S5024DW, Single Feed Electro Lubricator, 1 qt Polycarbonate Reservoir With Swivel Cap, 5/8-18 Thread for Remote Mounting, 1/8 Female NPT Outlet, 24VDCSingle Feed Electro Lubricators are especially suitable for intermittent operations. Lubrication occurs when the solenoid is activated ._x000D__x000D_The reservoir and sight are vented to allow liquid to flow by gravity. An adjustable precision needle valve controls the flow rate; it has a friction lock to guard against loosening from vibration. Drop feeding can be observed through the glass viewing window in the valve body. Polycarbonate reservoir features a cap that swivels out of the way for easier filling, while remaining attached to the reservoir ._x000D__x000D_This electric oiler features a 1/8 female NPT outlet with a 5/8-18 threaded shank for remote mounting . The solenoid has a 1/2 NPT thread for connecting with conduit and is powered by 24VDC. For additional voltages and frequencies, please consult factory. The diameter of the reservoir is 3 5/8 and the total height of the lubricator is 12 1/2.
