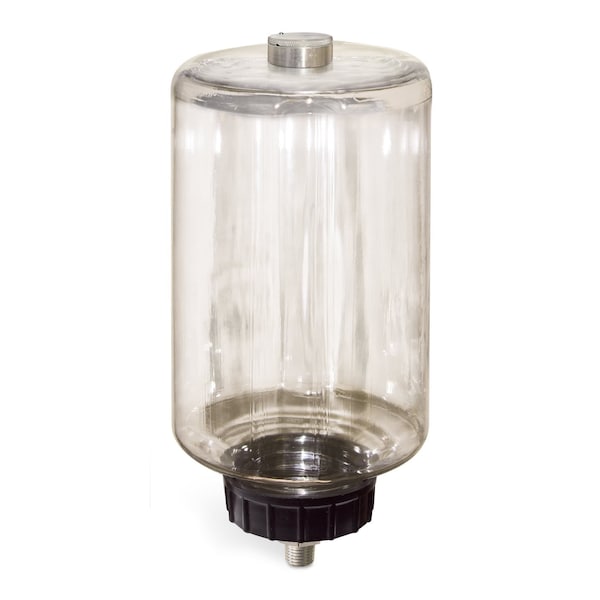

PurgeX Accessories - Polycarbonate Reservoirs - 1/2 gal, 1/4in. Male NPT, Pipe Mount
Mfr # B1748-0646B1W
Zoro # G516547355
product price:
$
71.75
/ea
Key Features
Overall Height
11 in
Overall Width
5 in
Body Material
Polycarbonate
Overall Length
5 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- B1748-0646B1W
- Zoro #
- G516547355
- UPC #
- -
- Country of Origin
- United States
- Body Material
- Polycarbonate
Description
Item # B1748-0646B1W, Oil Reservoir, 1/2 gal Polycarbonate, 1/4 Male NPT, Pipe MountOil Reservoirs, or Oil Cups, use gravity to dispense liquid. They are designed to serve as a central reservoir of an oiling system .This polycarbonate reservoir with a polypropylene base is suitable for temperatures up to 225° F. It features a cap that swivels out of the way for easier filling, while remaining attached to the reservoir .Buna-N seals are used. There is a plated steel 1/4 male NPT outlet to mount directly to a pipe. The reservoir diameter is 5 and the total height of the unit is 10 7/8 .Additional shutoff and sight feed valves are needed for the regulation of liquid flow.
