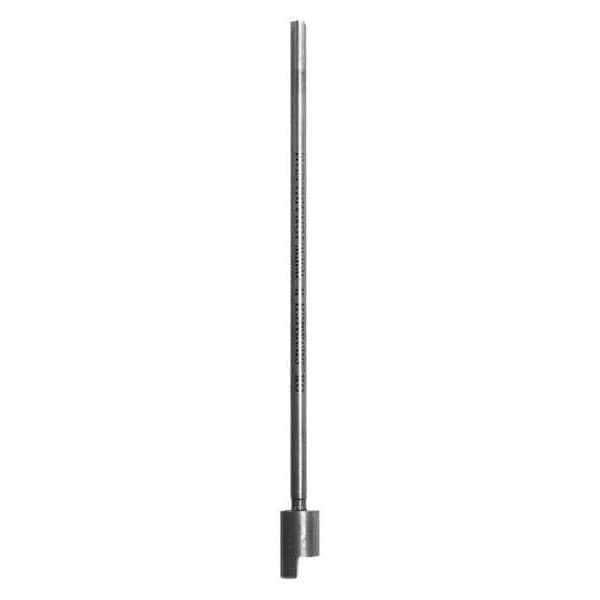

Wire Wrap Bit, Wire Gauge 30
Mfr # SB30MSH-B
Zoro # G7529855
product price:Â
$
88.39
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Number of Pieces
1
Wire Gauge
30
Min. Terminal Diagonal (In.)
0.031 in
Wrapping Terminal Hole Depth (In.)
0.75 in
Max. Terminal Diagonal (In.)
0.035 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SB30MSH-B
- Zoro #
- G7529855
- UPC #
- 811490013469
- Country of Origin
- China
Dimensions
- Wrapping Terminal Hole Depth (In.)
- 0.75 in
- Effective Radius (In.)
- 0.064 in
- Wrapping Terminal Hole Dia. (In.)
- 0.036 in
- Effective Radius
- 0.064 in
- Terminal Hole Diameter
- 0.036 in
- Maximum Insulation Diameter
- 0.027 in
- Terminal Hole Depth
- 0.75 in
- Tool Length
- 3 in
Details
- Item
- Wire Wrap Bit
- Number of Pieces
- 1
- Wire Gauge
- 30
- Min. Terminal Diagonal (In.)
- 0.031 in
- Max. Terminal Diagonal (In.)
- 0.035 in
- Wrapping Type
- Modified
- Maximum Wire Capacity
- 30 AWG
- Compatible with Product Type
- Fully Compatible with any Make or Model of Wire Wrapping Tools
- Minimum Terminal Diagonal
- 0.031 in
- For Use With
- 0.025 in (0.63 mm) Square Terminals with 0.100 in (2.54 mm) Center to Center of the Pins
- Maximum Terminal Diagonal
- 0.035 in
- Product Type
- Wrap Bit
- Use with Sleeve Number
- P3032, P3032INS
Description
Wire Wrap Bit, Product Type Wrap Bit, Wrapping Type Modified, Effective Radius 0.064 in, Maximum Insulation Diameter 0.027 in, Maximum Terminal Diagonal 0.035 in, Terminal Hole Depth 0.75 in, Maximum Wire Capacity 30 AWG, Terminal Hole Diameter 0.036 in, Minimum Terminal Diagonal 0.031 in, Compatible with Product Type Fully Compatible with any Make or Model of Wire Wrapping Tools, For Use With 0.025 in (0.63 mm) Square Terminals with 0.100 in (2.54 mm) Center to Center of the Pins
