Ok Industries

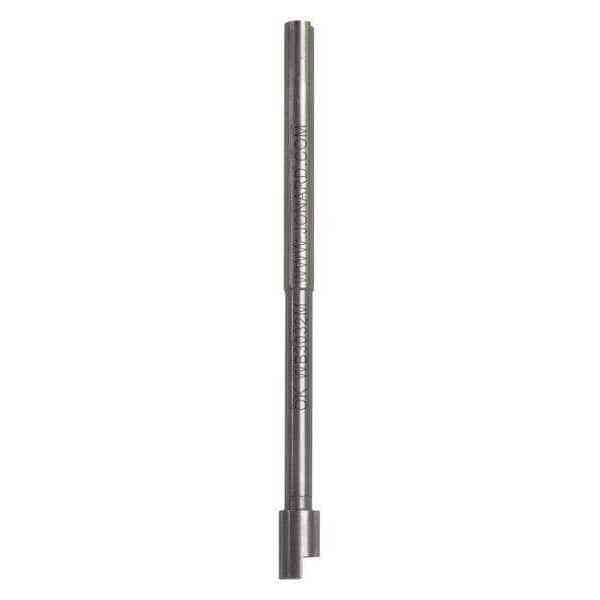

Wire Wrapping Bit, 30-32 AWG

product price: $63.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type 3 in
  • Number of Pieces 1
  • Wire Gauge 30 to 32 AWG
  • Max. Insulation Dia. (In.) 0.027 in
  • Wrapping Terminal Hole Depth (In.) 0.75 in
See all product information

Product Information

Dimensions

Max. Insulation Dia. (In.) 0.027 in
Wrapping Terminal Hole Depth (In.) 0.75 in
Effective Radius (In.) 0.064 in
Wrapping Terminal Hole Dia. (In.) 0.04 in
Terminal Hole Diameter 0.04 in
Tool Length 3 in
Terminal Hole Depth 0.75 in
Effective Radius 0.064 in
Maximum Insulation Diameter 0.027 in

Details

Item Wire Wrapping Bit
Type 3 in
Number of Pieces 1
Wire Gauge 30 to 32 AWG
Min. Terminal Diagonal (In.) 0.034 in
Max. Terminal Diagonal (In.) 0.038 in
Product Type Wrap Bit
Maximum Wire Capacity 30 AWG
Use with Sleeve Number P3032, P3032INS
For Use With 0.025 in (0.63 mm) Square Terminals with 0.100 in (2.54 mm) Center to Center of the Pins
Minimum Terminal Diagonal 0.034 in
Compatible with Product Type Fully Compatible with any Make or Model of Wire Wrapping Tools
Minimum Wire Capacity 32 AWG
Maximum Terminal Diagonal 0.038 in
Wrapping Type Modified

Description

Wire Wrapping Bit, Product Type Wrap Bit, Wrapping Type Modified, Effective Radius 0.064 in, Maximum Insulation Diameter 0.027 in, Maximum Terminal Diagonal 0.038 in, Terminal Hole Depth 0.75 in, Maximum Wire Capacity 30 AWG, Terminal Hole Diameter 0.04 in, Minimum Wire Capacity 32 AWG, Minimum Terminal Diagonal 0.034 in, Compatible with Product Type Fully Compatible with any Make or Model of Wire Wrapping Tools
