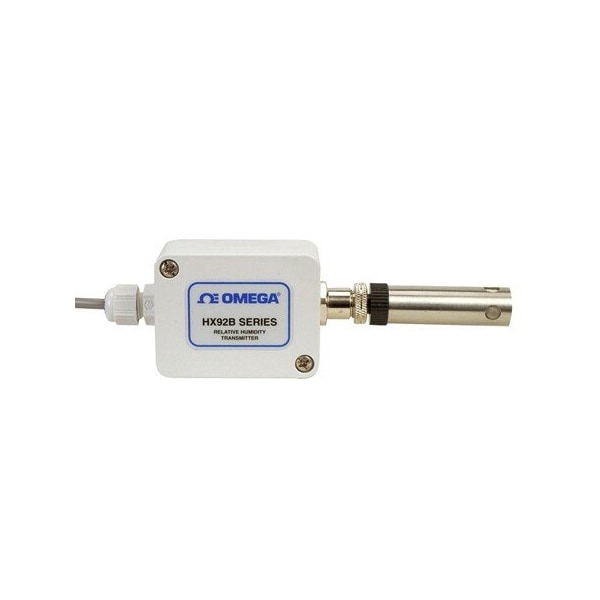

Temperature and Humidity Transmitter: 4 to 20mA, Screw Terminals, -22°F to 167°F, HX92B
Mfr # HX92BC
Zoro # G621908027
product price:
$
567.99
/ea
Free Shipping & Returns
Key Features
Series
HX92B
Compensated Temperature - Maximum
167 Degrees F
Compensated Temperature - Minimum
-22 Degrees F
Display Screen Type
No Display
Overall Height
1.37 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HX92BC
- Zoro #
- G621908027
- UPC #
- -
- Country of Origin
- United States
- Series
- HX92B
- Compensated Temperature - Maximum
- 167 Degrees F
- Compensated Temperature - Minimum
- -22 Degrees F
- Display Screen Type
- No Display
- Standards
- CE, RoHS, UKCA
- Electrical Connection
- Screw Terminals
- Temperature Accuracy
- +/- 4 %
- Operating Temperature - Minimum
- -30 Degrees C
- Humidity Measurement - Maximum
- 100 %
- Response Time
- 8 sec
- Includes
- Duct Mount Kit
- Process Media Temperature Measurement - Maximum
- 75 Degrees C
- Operating Temperature - Maximum
- 75 Degrees C
- Item
- Temperature and Humidity Transmitter
- Enclosure Material
- Polycarbonate
- Humidity Accuracy
- +/-2.5% from 20 to 80% RH; +/-3.5% from 5 to 20% and 80 to 95% RH; +/-4% from 0 to 5% and 95 to 100% RH; 0 to 100% RH
- Mounting Style
- Wall Mount
- Input Voltage
- 9 to 30V DC
- Features
- Field Replaceable Sensor Probe (Except for Duct Mount Model)
- Humidity Measurement - Minimum
- 0 %
- NEMA Enclosure Rating
- 13
- Output Power
- 4 to 20mA
- IP Rating
- IP54
- Process Media Temperature Measurement - Minimum
- -30 Degrees C
Description
HUM XMITTER WALL MNT 4-20MA CE
