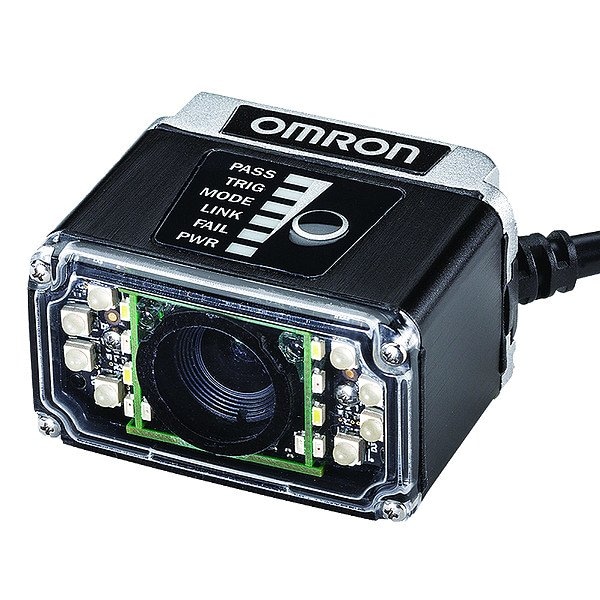

Barcode Reader, Wide Angle Len, 650 mA
Mfr # V420F000W12MSRX
Zoro # G509769221
product price:Â
$
4,523.99
/ea
Free Shipping & Returns
Key Features
Type of light
Red Light
Wavelength
625 nm
Overall Length
25.4 mm
Minimum Ambient Temperature
0 Degrees C
Lens Type
Wide Angle
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- V420F000W12MSRX
- Zoro #
- G509769221
- UPC #
- 4549734573382
- Country of Origin
- United States
Dimensions
- Wavelength
- 625 nm
- Overall Length
- 25.4 mm
- Overall Width
- 44.5 mm
- Overall Depth
- 38.1 mm
- Wire Rope Length
- 25.4 mm
- Length
- 25.4 mm
Details
- Item
- Barcode Reader
- Type of light
- Red Light
- Minimum Ambient Temperature
- 0 Degrees C
- Lens Type
- Wide Angle
- Number of Digital Outputs
- 3
- Image Resolution
- 1280 x 960 px
- Standards
- BIS, BSMI Pending, EAC, EN 55024:2010, EN 55032:2015 + AC:2016, FCC Part 15, Sub Part B (Class B), IEC 62471-1: 2006, KC, RCM, UL60950-1
- Current Consumption
- 650 mA
- Number of Digital Inputs
- 3
- Maximum Ambient Temperature
- 45 Degrees C
- Communication Interface
- Ethernet Over USB/HID, RS-232C, USB 2.0 High Speed
- Features
- Autofocus to Read Codes at Different Distances, Liquid Lens for Unlimited Autofocus
- Operating Voltage
- 5V DC
- Protection Features
- IP54
- Housing Material
- Diecast Aluminum
Description
Barcode Reader, Communication Interface Ethernet Over USB/HID, RS-232C, USB 2.0 High Speed, Current Consumption 650 mA, Features Autofocus to Read Codes at Different Distances, Liquid Lens for Unlimited Autofocus, Housing Material Diecast Aluminum, Image Resolution 1280 x 960 px, Lens Type Wide Angle, Maximum Ambient Temperature 45 Degrees C, Minimum Ambient Temperature 0 Degrees C, Number of Digital Inputs 3, Number of Digital Outputs 3, Operating Voltage 5V DC, Overall Depth 38.1 mm
Restrictions
This item has been restricted from sale in the following states:
CA
