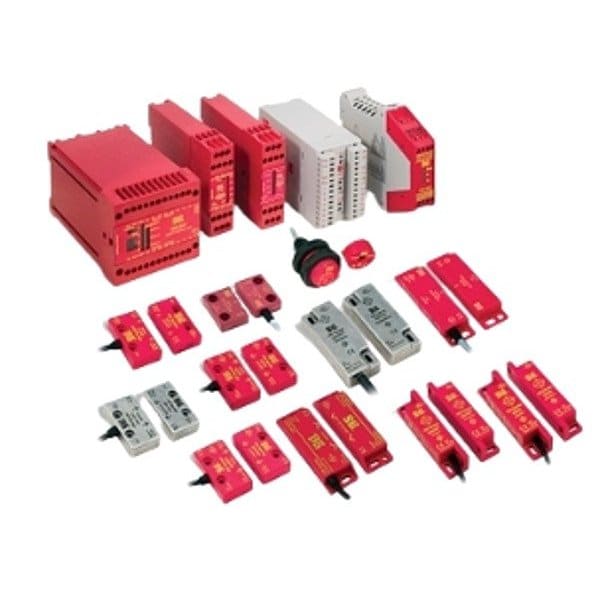

Coded Magnetic Universal Reed Style
- Mfr # 44536-0521
- Zoro # G516560996
product price:Â
$
242.99
/ea
Free Shipping & Returns
Key Features
On Sensing Distance - Maximum
10 mm
Body Style
Rectangular
Magnet Actuator Depth
14 mm
Standards
IEC/EN 60497-5-3
NEMA Enclosure Rating
No Enclosure
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 44536-0521
- Zoro #
- G516560996
- UPC #
- 4547648832755
- Country of Origin
- United States
- Item
- Magnetically Actuated Safety Interlock Switch
- On Sensing Distance - Maximum
- 10 mm
- Body Style
- Rectangular
- Standards
- IEC/EN 60497-5-3
- NEMA Enclosure Rating
- No Enclosure
- Off Sensing Distance - Maximum
- 10 mm
- Operating Temperature - Minimum
- 50 Degrees F
- Body Material
- ABS
- Indicating Light
- No Indicating Light Included
- Port Location
- Bottom Output, Top Output
- Operating Temperature - Maximum
- 131 Degrees F
- Contact Form
- 1NO/2NC
- DC Contact Rating
- 300 mA @ 24VDC
- Termination Type
- Pre-Cabled
- IP Rating
- IP67
- On Sensing Distance - Minimum
- 7 mm
- Series
- CM Series
- Off Sensing Distance - Minimum
- 7 mm
- Switch Type
- Reed Switch
Dimensions
- Magnet Actuator Depth
- 14 mm
- Switch Height
- 14 mm
- Switch Depth
- 28 mm
- Manufacturer Warranty Length
- 1 yr
- Overall Height
- 0.55 in
- Overall Width
- 2.05 in
- Magnet Actuator Height
- 28 mm
- Overall Depth
- 1.1 in
- Switch Width
- 52 mm
- Magnet Actuator Width
- 52 mm
- Cable Length
- 16.4 ft
Description
Magnetically Actuated Safety Interlock Switch, Series CM Series, Switch Width 52 mm, Switch Height 14 mm, Switch Depth 28 mm, Contact Form 1NO/2NC, AC Contact Rating Not Applicable, DC Contact Rating 300 mA @ 24VDC, Termination Type Pre-Cabled, Cable Length 16.4 ft, IP Rating IP67, Body Material ABS, Standards IEC/EN 60497-5-3
