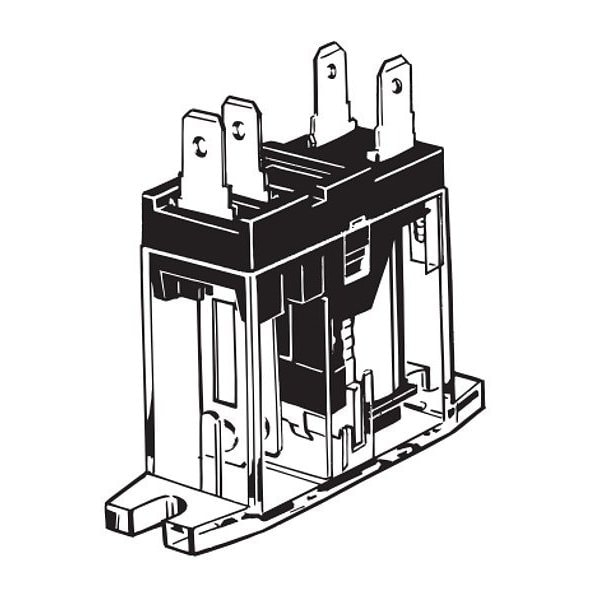

Custom Relay, 106 mA, 4 Pins, Quick Connect

  • Mfr # G2R-1A-T DC5

  • Zoro # G810190455

product price:  $10.29
/ea

Key Features

Electrical Connection
Quick-Connect
Number of Pins
4
Coil Voltage
5V DC
Current Rating
106 mA
Contact Form
SPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
G2R-1A-T DC5
Zoro #
G810190455
UPC #
4547648031868
Country of Origin
Malaysia

Dimensions

Body Height
1.77 in
Overall Depth
1.5 in
Flat Pin Width
4.75 mm
Body Width
0.55 in

Details

Item
Custom Relay
Electrical Connection
Quick-Connect
Number of Pins
4
Coil Voltage
5V DC
Current Rating
106 mA
Contact Form
SPST-NO
Contact Rating (AC)
10 A @ 250V, 7.5 A @ 250V
Contact Rating (DC)
10 A @ 30V, 5 A @ 30V
Features
Screwless Clamp-Terminal Sockets Available, Space Saving - 16 mm with Socket, Test Button, Momentary and Lockable, Blue for DC, Red for AC Versions
Standards
RoHS
Maximum Operating Temperature
70 Degrees C
Maximum Switching Voltage
125V DC, 380V AC
Series
G2R
Minimum Operating Temperature
-40 Degrees C
Power Consumption
0.53 W
Status Indicator
No Indicator
Minimum Switching Current
10 A
Response Time
15 msec
Insulation Resistance
1,000 megaohm
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity, 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Frequency
50/60 Hz
Electrical Operating Durability
100,000
Coil Resistance
70 ohm
Mechanical Operating Durability
10,000,000, 20,000,000
Weight
17 g
Mounting Style
Side Flange
Base Shape
Square

Description

Custom Relay, Base Shape Square, Coil Voltage 5V DC, Contact Form SPST-NO, Electrical Connection Quick-Connect, Flat Pin Width 4.75 mm, Number of Pins 4, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 250V, 7.5 A @ 250V, Contact Rating (DC) 10 A @ 30V, 5 A @ 30V, Mounting Style Side Flange, Body Height 1.77 in, Body Width 0.55 in, Coil Resistance 70 ohm
