  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

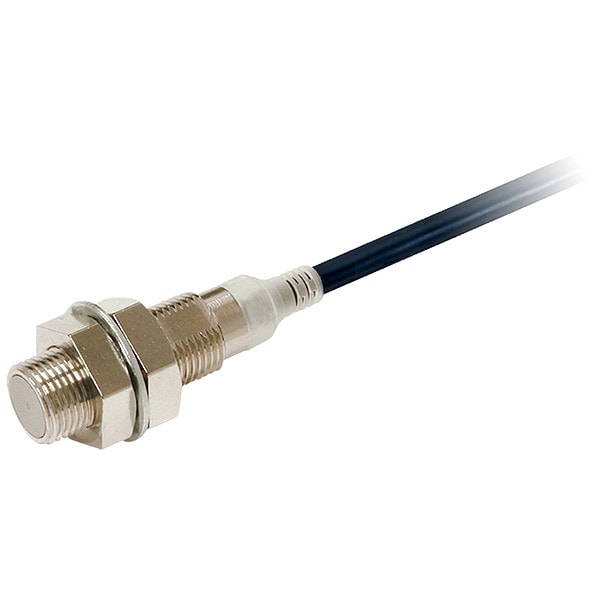

Omron Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded E2E-X2C212 2M - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # E2E-X2C212 2M

  • Zoro # G206458466

product price: $80.25
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Length
47.1 mm
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
1,500 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2E-X2C212 2M
Zoro #
G206458466
UPC #
4549734466233
Country of Origin
China

Dimensions

Length
47.1 mm
Overall Height
47 mm
Overall Diameter
12 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
1,500 Hz
Electrical Connection
Bare Wire
Description/Special Features
Output Short-Circuit Protection, Reverse Polarity, Surge Suppression
Max. Current Load
16 mA
Standards
CE, CSA C22.2, CSA, UL 60947-5-2-14, UL 60947-5-2 4
IP Rating
IP67, IP67G, IP69K
Includes
Clamping Nuts, Toothed Washer
Operating Temp. Range
-40 Degrees to 85 Degrees C
Output Circuit Voltage - Minimum
10 V DC
Output Circuit Type
NPN
Output Circuit Contact Form
NC
Sensing Face Shielding
Shielded
Body Material
Brass
Series
E2E NEXT
Electrical Installation Type
Prewired Cable
Body Finish
Nickel Plated
Output Circuit Number of Wires
3
Style
Cylindrical, Inductive
AC Voltage Rating
Not Rated
Operating Temperature - Minimum
-40 Degrees F
Output Circuit Voltage - Maximum
30 V DC
DC Voltage Rating
10-30V DC
Switching Frequency
1,500 Hz
Features
Cables with Oil Resistance Shut Out, Easy Installation, Environmental Resistance, Water Resistant, Vibration Resistant, Early Error Detection, Quick Recovery, Prox3 Hybrid Circuitry with Thermal Distance Control 2, E-Jig Compatible, Stable Operation, Oil Resistance, Washdown Resistant
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
2 mm
Load Current - Maximum
200 mA
Operating Temperature - Maximum
185 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30 V DC, Shielded, Proximity Sensor Operating Frequency 1,500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection Cable, Output Mode NC, IP Rating IP67, IP67G, IP69K, Case Material Nickel Plated Brass, Length 47.1 mm, Operating Temp. Range -40 Degrees to 85 Degrees C, Max. Current Load 16 mA

Restrictions

This item has been restricted from sale in the following states: CA
