  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

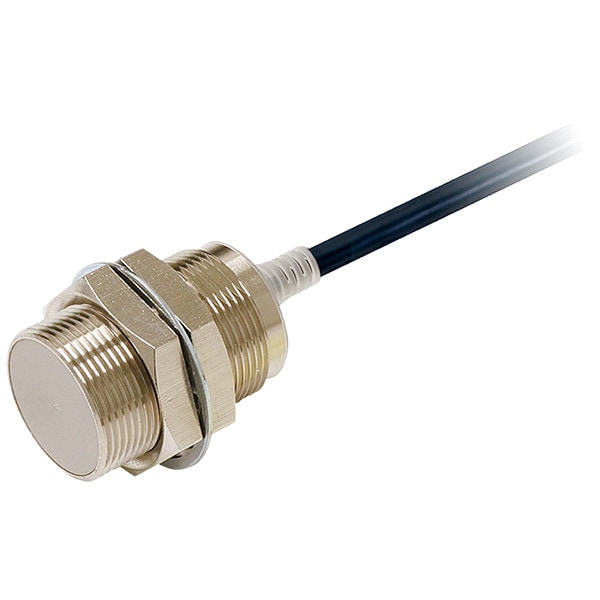

Omron Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded E2E-X10B1D30 2M - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # E2E-X10B1D30 2M

  • Zoro # G006458499

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Length
60.3 mm
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
400 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2E-X10B1D30 2M
Zoro #
G006458499
UPC #
4549734482660
Country of Origin
China

Dimensions

Length
60.3 mm
Cable Length
2 m
Overall Height
60 mm
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
400 Hz
Max. Current Load
16 mA
Electrical Connection
Bare Wire
IP Rating
IP67, IP67G, IP69K
Standards
CE, CSA C22.2, CSA, UL 60947-5-2-14, UL 60947-5-2 4
Operating Temp. Range
-40 Degrees to 85 Degrees C
Includes
Clamping Nuts, Toothed Washer
Description/Special Features
Output Short-Circuit Protection, Reverse Polarity, Surge Suppression
Switching Frequency
400 Hz
Output Circuit Voltage - Minimum
10 V DC
Features
Cables with Oil Resistance Shut Out, Easy Installation, Environmental Resistance, Water Resistant, Vibration Resistant, Early Error Detection, Quick Recovery, Prox3 Hybrid Circuitry with Thermal Distance Control 2, E-Jig Compatible, Stable Operation, Oil Resistance, Washdown Resistant
Electrical Installation Type
Prewired Cable
Sensing Distance - Maximum
10 mm
Load Current - Maximum
200 mA
Output Circuit Number of Wires
3
Output Circuit Contact Form
NO
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
185 Degrees F
Body Finish
Nickel Plated
Body Material
Brass
Style
Cylindrical, Inductive
Includes Indicator Lights
Indicator Lights Included
Series
E2E NEXT
Output Circuit Voltage - Maximum
30 V DC
DC Voltage Rating
10-30V DC
Sensing Face Shielding
Shielded
Output Circuit Type
PNP
AC Voltage Rating
Not Rated

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30 V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection Cable, Output Mode NO, IP Rating IP67, IP67G, IP69K, Case Material Nickel Plated Brass, Length 60.3 mm, Operating Temp. Range -40 Degrees to 85 Degrees C, Max. Current Load 16 mA

Restrictions

This item has been restricted from sale in the following states: CA
