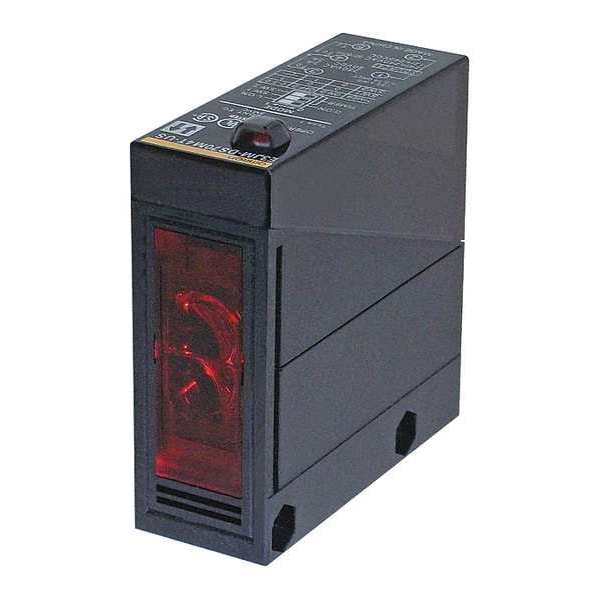

Diffuse Photoelectric Sensor, Terminal Block, Right Angle, Rectangular, Selectable Light On/Dark On, Relay

  • Mfr # E3JMDS70M4TUS

  • Zoro # G8591615

product price:  $311.99
/ea
Free Shipping & Returns

Key Features

Sensing Method
Diffuse
Electrical Connection
Terminal Block
Style
Rectangular
Width
1.0"
Orientation
Right Angle
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E3JMDS70M4TUS
Zoro #
G8591615
UPC #
-
Country of Origin
China

Dimensions

Width
1.0"
Depth
2.65"
Width - Rectangular Photoelectric Sensor
25 mm
Height - Rectangular Photoelectric Sensor
75 mm
Min. Object Size
700mm dia Opaque
Depth - Rectangular Photoelectric Sensor
67 mm
Length
2.95"
Overall Height
80 mm
Overall Width
25 mm
Minimum Object Size
700mm Dia. Opaque
Overall Depth
55 mm

Details

Item
Photoelectric Sensor
Sensing Method
Diffuse
Electrical Connection
Terminal Block
Style
Rectangular
Orientation
Right Angle
Operating Mode
Selectable Light On/Dark On
IP Rating
IP66
Output Circuit Type
Relay
AC Voltage Rating
12-240V AC
DC Voltage Rating
12-240V DC
Standards
CSA Certified, UL Listed
Max. Sensing Distance - Rectangular Photoelectric Sensor
700 mm
Body Material
Plastic
Operating Temp. Range
-25 Degrees to 55 Degrees C
Features
Multi-Voltage Power Supply
Light Source
Infrared LED
Max. Load Current
3 A
Response Time
30 msec
Max. Sensing Distance
700mm
Power Requirement
24 to 240VAC/12 to 240VDC
Power Requirement - Rectangular Photoelectric Sensor
24 to 240V AC/12 to 240V DC
Operating Frequency
5/6 Hz
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
5/6 Hz
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
131 Degrees F
Emitted Sensor Light
Infrared
Electrical Installation Type
Terminal Block
Sensing Distance - Maximum
700 mm
Series
E3JM
Load Current - Maximum
3,000 A

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
