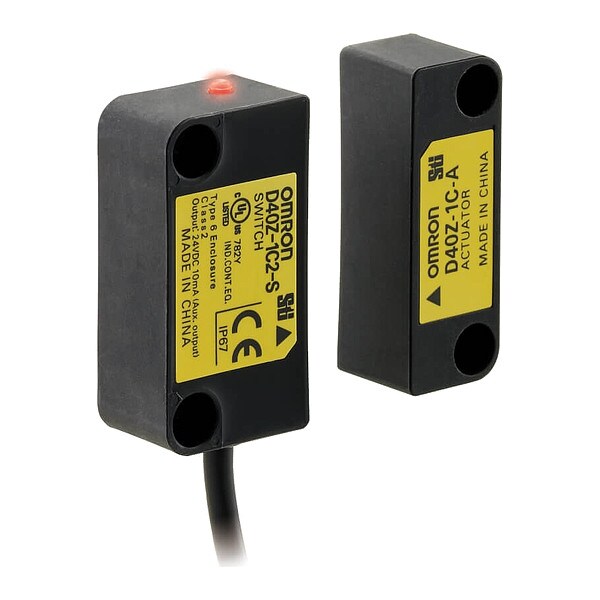

Door Switch, Induction, 2m Cable
Mfr # D40Z-1C2
Zoro # G610080192
product price:Â $392.99
/ea
Free Shipping & Returns
Key Features
Width
0.98 in
Height
1.89 in
Technology
Induction
Cable Length
6.56 ft
On Sensing Distance
0.2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
D40Z-1C2
Zoro #
G610080192
UPC #
4547648833752
Country of Origin
China
Dimensions
Width
0.98 in
Height
1.89 in
Cable Length
6.56 ft
Depth
0.63 in
Overall Depth
48 mm
Overall Width
16 mm
Overall Height
17 mm
Details
Item
Door Switch
Technology
Induction
On Sensing Distance
0.2 in
IP Rating
IP67
Off Sensing Distance
0.59 in
Description/Special Features
Self-Diagnostic Function, Used on Higher Risk Level Applications
Standards
CE, cULus, IEC/EN 60497-5-3, ISO 13849-1, TUV
Termination Type
M4
Body Material
PBT Resin
Operating Temp. Range
-10 Degrees to 65 Degrees C
For Use With
G9SP Safety Controllers, G9SX-NS[] Safety Controllers
On Sensing Distance - Maximum
0.2 in
Off Sensing Distance - Maximum
0.59 in
Operating Temperature - Maximum
65 Degrees F
Operating Temperature - Minimum
-10 Degrees F
Description
Door Switch, Operating Temp. Range -10 Degrees to 65 Degrees C, Termination Type M4, Cable Length 6.56 ft, IP Rating IP67, On Sensing Distance 0.2 in, Off Sensing Distance 0.59 in, Body Material PBT Resin, Description/Special Features Self-Diagnostic Function, Used on Higher Risk Level Applications, Standards CE, cULus, IEC/EN 60497-5-3, ISO 13849-1, TUV
Restrictions
This item has been restricted from sale in the following states:
CA
