  9. Electronic Counter, Light Gray, Plastic
No Product Image Available

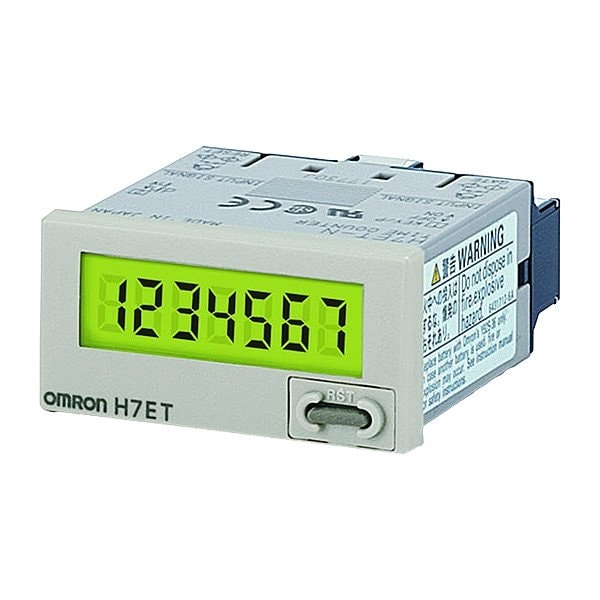

Electronic Counter, Light Gray, Plastic

  • Mfr # H7ET-NFV

  • Zoro # G510080186

product price: $203.99
/ea
Free Shipping & Returns

Key Features

Max. Time Setting
999,999.9 hr
Number of Channels
2
Standards
EN61010-1, VDE0106/P100, CSA C22.2 No.14, Lloyds, UL 863
Backup Device
Battery
Mounting
Flush
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H7ET-NFV
Zoro #
G510080186
UPC #
4548583755956
Country of Origin
Indonesia

Dimensions

Depth
55 1/2 mm
Height
24 mm
Width
48 mm
Overall Depth
2 1/4 in
Overall Height
1 in
Overall Width
2 in

Details

Item
Electronic Counter
Max. Time Setting
999,999.9 hr
Number of Channels
2
Standards
EN61010-1, VDE0106/P100, CSA C22.2 No.14, Lloyds, UL 863
Backup Device
Battery
Mounting
Flush
Min. Time Setting
0 sec
Features
Battery is Replaceable, Dual Operation Mode, Key-Protect Switch, Display with 8.6 mm Character Height
Color
Light Gray
Voltage
24 to 240V AC/DC
Available Actions - Electronic Timer
On/Off
NEMA Rating
4
Operating Temp.
-10 Degrees to 55 Degrees C
Description/Special Features
All Models have a Depth of 48.5 mm, Battery is Replaceable for Totalizer Reuse and Conservation of the Environment, Dual Operation Mode, Finger Protection Terminal Block Conforms to VDE0106 Part100, Includes new Models with Backlight for Improved Visibility in Dimly lit Places, Key-Protect Switch to Prevent Faulty Reset Key Operation, Large Display with 8.6 mm Character Height, Short Body, Six-Language Instruction Manual Provided
Operating Temperature - Minimum
14 Degrees F
IP Rating
IP20, IP66
NEMA Enclosure Rating
4
Body Material
Plastic
Time Setting - Minimum
0 hr
Timer Functions
On/Off
Mounting Style
Flush
Indoor/Outdoor Usage
Indoor
DC Voltage Rating
24-240V DC
Series
H7E
Time Setting - Maximum
4,000 day
AC Voltage Rating
240V AC
Operating Temperature - Maximum
131 Degrees F
Astronomic Functionality
Not Astronomic
Body Color
Light Gray
Reset Type
Key
Input Voltage
24 to 240V AC/DC

Description

Electronic Counter, Mounting Flush, Height 24 mm, Depth 55 1/2 mm, Width 48 mm, Series H7E, Reset Type Key, Standards EN61010-1, VDE0106/P100, CSA C22.2 No.14, Lloyds, UL 863, NEMA Rating 4, IP Rating IP20, IP66
